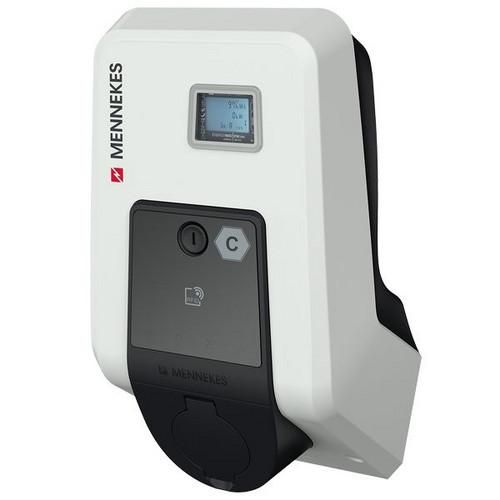

The AMTRON® Professional wallboxes are perfectly tailored to the requirements of semi-public areas, such as your company car park or a customer car park. A strong overall package for setting up a future-proof charging infrastructure: high safety requirements, customer-friendly operation, networking capability for implementing requirement-based billing, system monitoring and load management combined in one solution. The Professional devices meet all legal requirements and are therefore compliant with calibration law. The charging stations can be networked via the LAN in order to use the integrated MENNEKES load management. The integrated mobile phone modem in the Professional+ versions enables a direct connection to MENNEKES ativo by inserting a SIM card. By using this service, you can easily bill users for your charging processes. With the integrated Plug & Charge (PnC) function, future charging will be even more convenient.
| Property | Value |
| Height: | 475 mm |
| Width: | 259 mm |
| Depth: | 220 mm |
| Protection class (IP): | IP44 |
| Impact resistance: | IK10 |
| Nominal connected load: | 22 kW |
| Max. Output per charging point: | 22 kW |
| System side connection design: | 3-phase |
| Mounting type: | Wall mounting |
| Housing material: | Plastic |
| Number of charging points: | 1 |
| Number of charging couplings type 2: | 1 |
| Number of residual current devices type A: | 1 |
| Access control function: | yes |
| With energy meter: | yes |
| With house connection box (HAK): | no |
| With communication interface: | yes |
| With load management: | yes |
| With circuit breaker: | yes |
