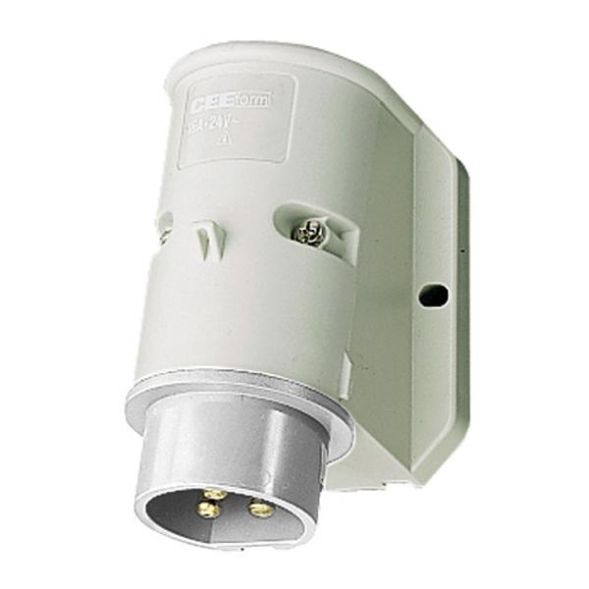

Wall plug, 16A3p12h, small voltage, IP44
| Property | Value |
| IEC current: | 16 A |
| UL/CSA current (if UL version required): | 20 A |
| Number of poles: | 3 |
| Connection technology: | screw terminal |
| Plug direction: | right-angled |
| Voltage according to EN 60309-2: | 40-50 V (50+60 Hz) white |
| Time setting: | 12 h |
| Identification color: | gray |
| Protection class (IP): | IP44 |
| Material: | Plastic |
| Phase inverter: | no |
| Design: | Surface-mounted device plug |
| Rated voltage: | 40 to 50 V |
| Rated frequency: | 50 to 60 Hz |
Features
Rated frequency
50 to 60 Hz
Phase inverter
No
HAB
16A 3-pole 12h IP44
Manufacturer
HAN
1967
GTIN
4015394012900
Connection technology
Screw terminal
Design
Surface-mounted device plug
Rated voltage
40 to 50 V
IEC current
16A
Identification color
Gray
Number of poles
3
IP protection)
IP44
Voltage according to EN 60309-2
40-50 V (50+60 Hz) white
Plug direction
Rectangular
UL/CSA current rating (if UL version required)
20A
Time position
12 hrs
Material
Plastic
