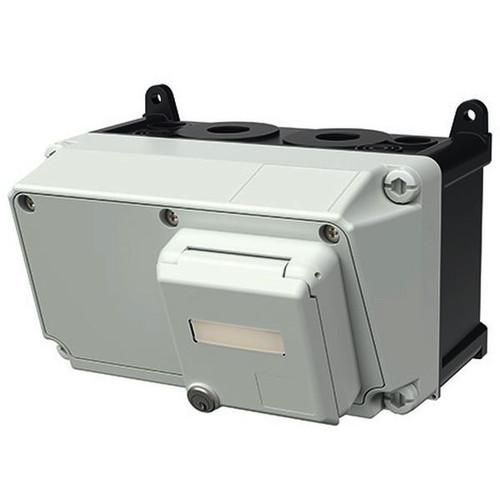

MENNEKES network housing AMAXX AMAPLAST housing 130 x 225mm protection class IP 67 lower part black upper part electro grey RAL 7035 with 1 data socket Cepex (order no. 4362G) for 2 RJ45 quick connection sockets, Cat. 6, make AMP (type TWIST 6SL Jack) same locking Scope of delivery: without data modules Cable entries: 2x M 25 top (locked) 2x M 25 bottom (locked) 2x M 20 each top and bottom (locked) Lower part with screw-in nuts for holding the floor mounting plate 1x mounting rail with mounting rail catches 1x cable gland set included (1 M25 screw connection, 1 multiple seal with 3 openings for a cable diameter of 5-7mm including matching blind plugs, 1 blind sealing seal for customer-side perforation) With the existing equipment, the network housing can be installed free-standing or next to or below an existing AMAXX combination.
| Property | Value |
| Number of doors: | 1 |
| Depth: | 245 mm |
| Width: | 188 mm |
| Height: | 228 mm |
| With front door: | no |
| Material: | Plastic |
| Can be dismantled: | no |
| RAL number: | 7035 |
| With earthing: | no |
| Protection class (IP): | IP44 |
| Color: | gray |
| With roof plate: | no |
| With side walls: | no |
| Number of height units (HE): | 1 |
