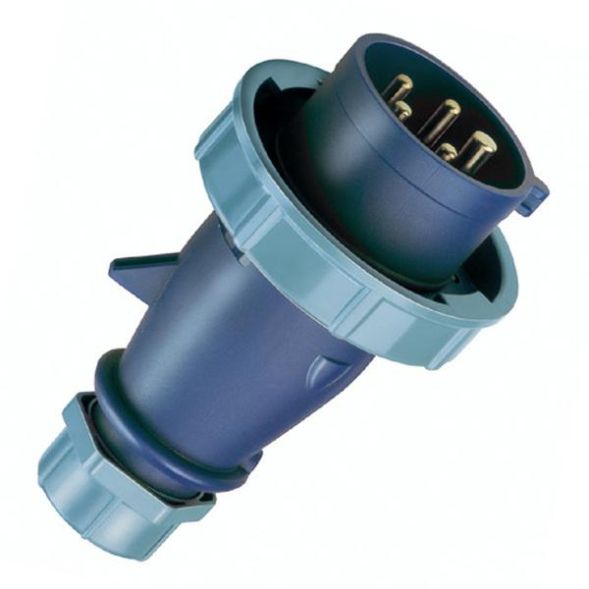

Plug AM-TOP, 16A5p9h230V, IP67
| Property | Value |
| IEC current: | 16 A |
| Number of poles: | 5 |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| UL/CSA current (if UL version required): | 20 A |
| Identification color: | blue |
| Phase inverter: | no |
| Protection class (IP): | IP67 |
| Connection technology: | screw terminal |
| Cable entry: | screw connection |
| Plug direction: | straight |
| Clock position: | 9 h |
| Material: | plastic |
| Military version: | no |
| RAL number: | 5007 |
Features
Phase inverter
No
HAB
AM-TOP 16A 5-pin 9h 230V IP67
Manufacturer
HAN
287
GTIN
4015394001997
Connection technology
Screw terminal
IEC current
16A
Cable entry
Screw connection
Identification color
Blue
Military version
No
Number of poles
5
RAL number
5007
IP protection)
IP67
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
Plug direction
Straight
UL/CSA current rating (if UL version required)
20A
Time position
9 hrs
Material
Plastic
