Mennekes 320013 Twinlet Type F test box

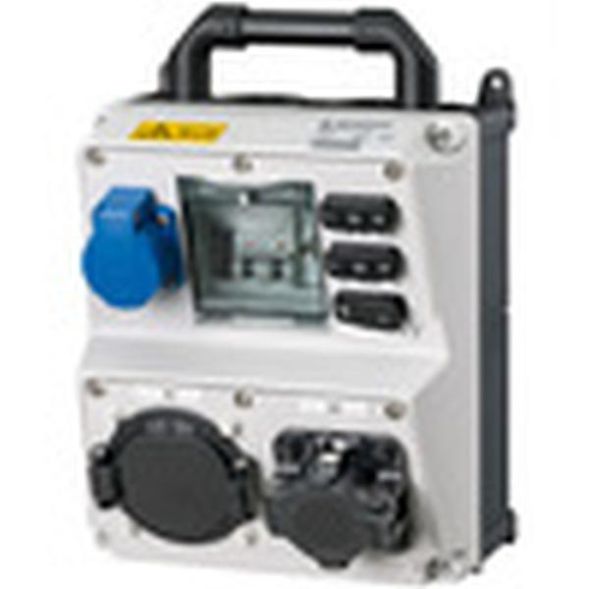

Test box TwInlet Type F Functional testing of charging stations, wall boxes and charging cables Generation 2 charging cables must be used to connect the test box. Types 1 and 2 vehicle inlets are installed in the test box. The charging cables are not included with the test box, but can be ordered separately. Attractive, robust plastic housing made of AMAPLAST in AMAXX design with handle, sealable, with external and internal... Internal fastening Protection class IP 20 Dimensions 260 x 225 x 190 (HxWxD) Upper part electric grey RAL 7035 Lower part black hinged on the side with double-threaded cover screws Equipment/protection: 1 SCHUKO socket 1 LS switch 10 1p+NB 1 vehicle charging plug type 1 20A Mode 3 with hinged cover 1 vehicle charging plug type 2 32A Mode 3 with hinged cover Other installations: 3 rocker switches 1 three-phase measuring relay 1 BNC socket Resistor-diode combination The following tests can be carried out: 1. Switch (State A / B) 2. Simulation of non-gassing and gassing vehicles Charging with and without ventilation request State C /D) 3. Error message of the electric vehicle Short circuit between CP and PE (State E) 4. Three-phase measuring relay with signal lights for checking the phases, the clockwise rotating field and the phase conductor voltages against the neutral conductor 5. Testing meters by connecting an alternating current load to the SCHUKO socket 6. BNC socket for connecting an oscilloscope Can be used to check the CP signal.
