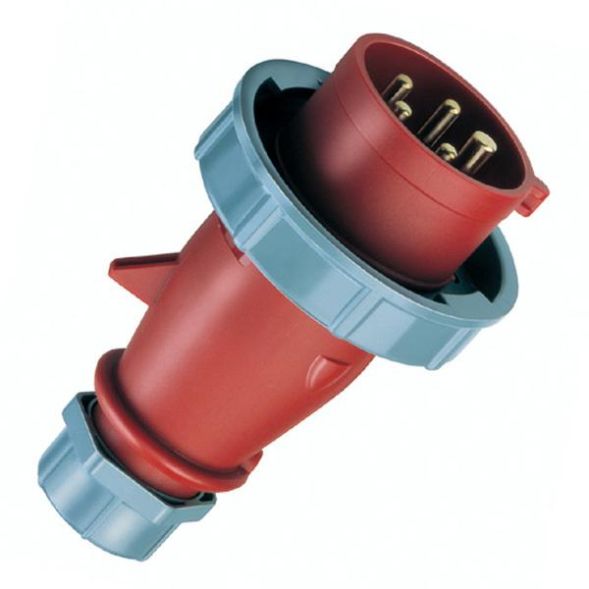

Phase inverter AM-TOP, 16A5p6h400V, IP67
| Property | Value |
| IEC current: | 16 A |
| Number of poles: | 5 |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| UL/CSA current (if UL version required): | 20 A |
| Identification color: | red |
| Phase inverter: | yes |
| Protection class (IP): | IP67 |
| Connection technology: | screw terminal |
| Cable entry: | screw connection |
| Plug direction: | straight |
| Time setting: | 6 h |
| Material: | plastic |
| Military version: | no |
| RAL number: | 3013 |
Features
Phase inverter
Yes
HAB
325 16A5P 6H400V AM TOP IP67
Manufacturer
HAN
325
GTIN
4015394002291
Connection technology
Screw terminal
IEC current
16A
Cable entry
Screw connection
Identification color
Red
Military version
No
Number of poles
5
RAL number
3013
IP protection)
IP67
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Plug direction
Straight
UL/CSA current rating (if UL version required)
20A
Time position
6 hours
Material
Plastic
