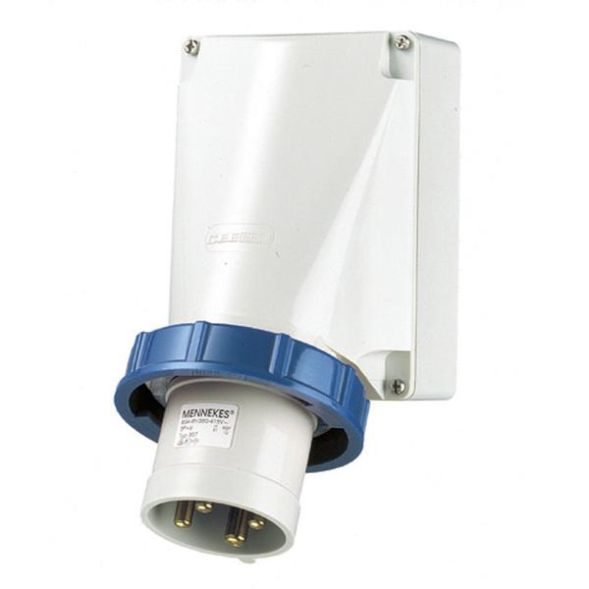

Wall plug, 125A4p9h230V, IP67
| Property | Value |
| IEC current: | 125 A |
| UL/CSA current (if UL version required): | 100 A |
| Number of poles: | 4 |
| Connection technology: | screw terminal |
| Plug direction: | right-angled |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| Time position: | 9 h |
| Identification color: | blue |
| Protection class (IP): | IP67 |
| Material: | Plastic |
| Phase inverter: | no |
| Design: | Surface-mounted device plug |
| Rated voltage: | 229 to 230 V |
| Rated frequency: | 50 to 60 Hz |
Features
Rated frequency
50 to 60 Hz
Phase inverter
No
HAB
125A 4-pole 9h 230V IP67
Manufacturer
HAN
363
GTIN
4015394002659
Connection technology
Screw terminal
Design
Surface-mounted device plug
Rated voltage
229 to 230 V
IEC current
125A
Identification color
Blue
Number of poles
4
IP protection)
IP67
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
Plug direction
Rectangular
UL/CSA current rating (if UL version required)
100A
Time position
9 hrs
Material
Plastic
