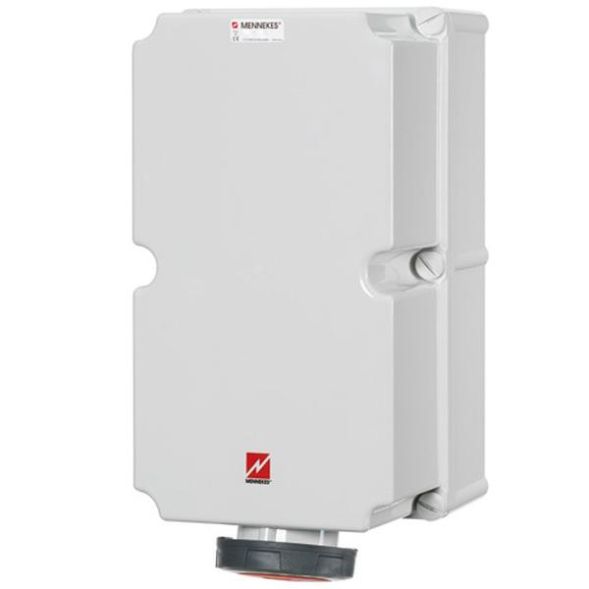

Wall box, 125A4p6h400V, IP67 with box terminal and X-CONTACT fuse. NH OO
| Property | Value |
| IEC current: | 125 A |
| UL/CSA current (if UL version required): | 100 A |
| Number of poles: | 4 |
| Switch: | with on/off switch without locking |
| Empty spaces on mounting rail: | no |
| Fuse protection: | Automatic |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Identification color: | red |
| Protection class (IP): | IP67 |
| With residual current device: | yes |
| Housing material: | Plastic |
| Military version: | no |
| Design: | Lower part and upper part |
Features
HAB
125A 4-pole 6h 400V IP67
Manufacturer
HAN
5043A
GTIN
4015394023579
Version
Bottom and top
IEC current
125A
Identification color
Red
Military version
No
Number of poles
4
IP protection)
IP67
Voltage according to EN 60309-2
400 V (50+60 Hz) red
UL/CSA current rating (if UL version required)
100A
Time position
6 hours
Housing material
Plastic
