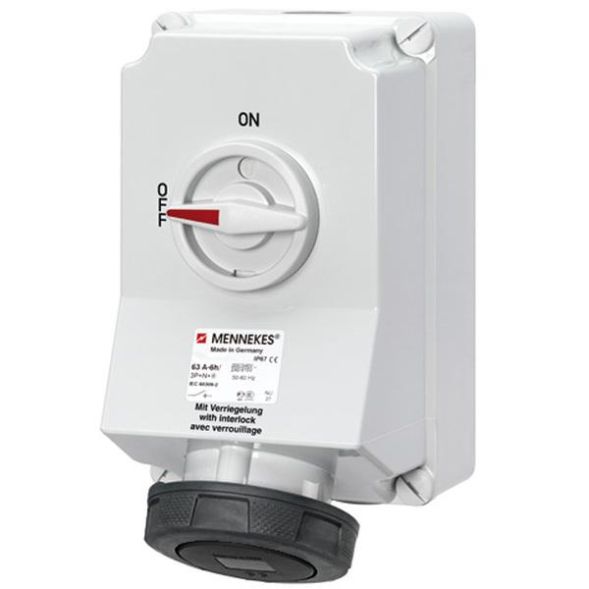

Wall socket DUO, 63A4p 7h500V, IP67 with box terminal and X-CONTACT switchable, as Art. 5111A/1074 but with additional auxiliary contacts on the switch (1 x normally closed, 1 x normally open) Switch: 40147000 + 40157000 Cable entries: M40 and M16 each open at the top, closed at the bottom.
| Property | Value |
| IEC current: | 63 A |
| UL/CSA current (if UL version required): | 60 A |
| Number of poles: | 4 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | no |
| Fuses: | mixed |
| Voltage according to EN 60309-2: | 500 V (50+60 Hz) black |
| Time setting: | 7 h |
| Identification colour: | black |
| With residual current device: | no |
| Material of Housing: | Plastic |
| Military version: | no |
| Version: | Lower and upper part |
Features
HAB
DUO 63A 4-pole 7h 500V IP67
Manufacturer
HAN
50694
GTIN
4015394049074
Version
Bottom and top
IEC current
63 A
Identification color
Black
Military version
No
Number of poles
4
Voltage according to EN 60309-2
500 V (50+60 Hz) black
UL/CSA current rating (if UL version required)
60A
Time position
7 hours
Housing material
Plastic
