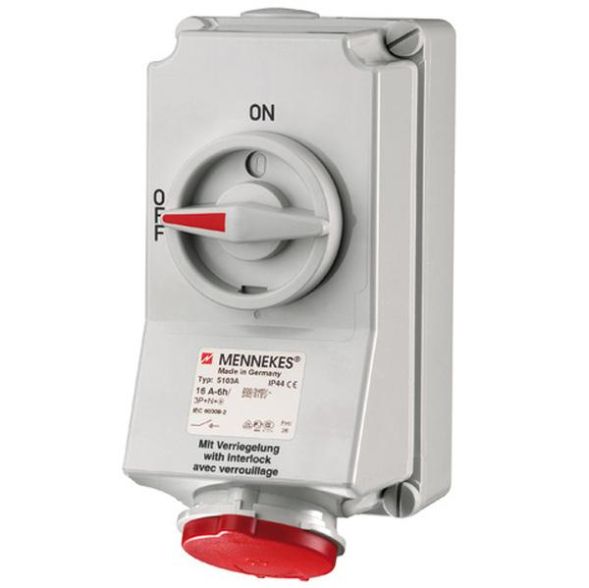

Wall socket DUO, 16A5p6h400V, IP44 switch 3P with 2 auxiliary contacts (1S + 1OE) (40122000) additional hole at the top M20
| Property | Value |
| IEC current: | 16 A |
| UL/CSA current (if UL version required): | 20 A |
| Number of poles: | 5 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | no |
| Protection: | mixed |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Identification color: | red |
| Protection class (IP): | IP54 |
| With residual current device: | no |
| Housing material: | plastic |
| Military version: | no |
| Version: | Lower and upper part |
Features
HAB
DUO 16A 5-pole 6h 400V IP44
Manufacturer
HAN
5103AH
GTIN
4015394024613
Version
Bottom and top
IEC current
16A
Identification color
Red
Military version
No
Number of poles
5
IP protection)
IP54
Voltage according to EN 60309-2
400 V (50+60 Hz) red
UL/CSA current rating (if UL version required)
20A
Time position
6 hours
Housing material
Plastic
