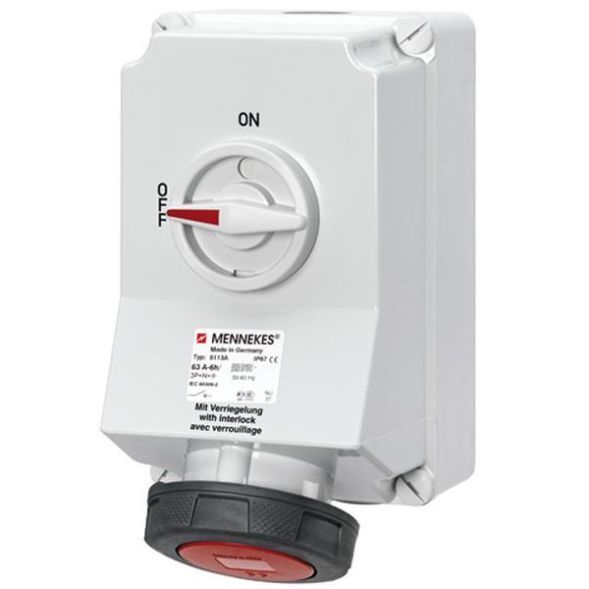

Wall socket DUO, 63A5p6h400V, IP67 HW/VN with box terminal and X-CONTACT switch 3P with additional auxiliary contacts (1x normally closed, 1x normally open) Switch 9214900001 (40147000) -40157000 Cable entries: M40 and M25 open at the top, with sealing plug at the bottom
| Property | Value |
| IEC current: | 63 A |
| UL/CSA current (if UL version required): | 60 A |
| Number of poles: | 5 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | no |
| Fuses: | mixed |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Identification colour: | red |
| With residual current device: | no |
| Material of the Housing: | Plastic |
| Military version: | no |
| Version: | Lower and upper part |
Features
HAB
DUO 63A 5-pole 6h 400V IP67 HW/VN
Manufacturer
HAN
5113AC
GTIN
4015394025177
Version
Bottom and top
IEC current
63 A
Identification color
Red
Military version
No
Number of poles
5
Voltage according to EN 60309-2
400 V (50+60 Hz) red
UL/CSA current rating (if UL version required)
60A
Time position
6 hours
Housing material
Plastic
