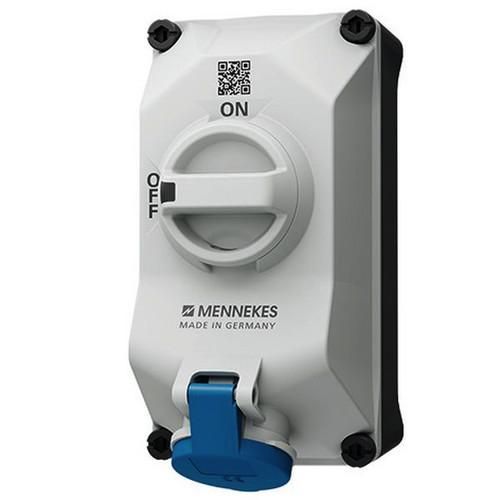

MENNEKES wall socket DUO 16A 3P 6h 230V IP44 X-CONTACT switchable locked wired ready for connection Plastic housing: Dimensions 225x118 mm (L x W) Lockable with padlock Upper part grey RAL 7035 Lower part black RAL 9005 with double thread cover screws Equipment: Load disconnector 3P + N + PE + 1 NC + 1 NO Cable entry: Lower part can be rotated 180° Connection from above and below possible 2 x M25 above or below (locked) 1 x M25 and 1 x M32 above or below (locked)
| Property | Value |
| IEC current: | 16 A |
| UL/CSA current (if UL version required): | 20 A |
| Number of poles: | 3 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | no |
| Fuses: | mixed |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| Time setting: | 6 h |
| Identification color: | blue |
| Protection class (IP): | IP44 |
| With residual current device: | no |
| Housing material: | plastic |
| Military version: | no |
| Design: | upper and lower part |
Features
HAB
5601306H DUO 16A3P6h 230V IP44
Manufacturer
HAN
5601306H
GTIN
4015394298083
Version
Bottom and top
IEC current
16A
Identification color
Blue
Military version
No
Number of poles
3
IP protection)
IP44
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
UL/CSA current rating (if UL version required)
20A
Time position
6 hours
Housing material
Plastic
