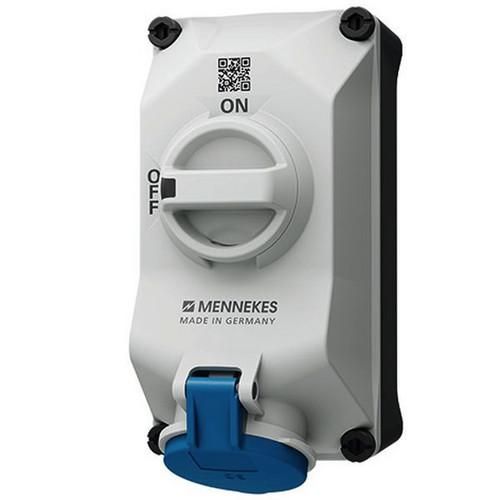

MENNEKES wall socket DUO 16A 4P 9h 230V IP44 X-CONTACT switchable locked wired ready for connection Plastic housing: Dimensions 225x118 mm (L x W) Lockable with padlock Upper part grey RAL 7035 Lower part black RAL 9005 with double thread cover screws Equipment: Load break switch 3P + N + PE Cable entry: Lower part can be rotated 180° Connection from above and below possible 2 x M25 above or below (locked) 1 x M25 and 1 x M32 above or below (locked) MENNEKES wall socket DUO 16A4P9h 230V IP44 X-Contact switchable locked wired ready for connection Plastic housing: Dimensions 225x118 mm (H x W) Lockable with Padlock Upper part: light grey, similar to colour code RAL 7035 Lower part: jet black, similar to colour code RAL 9005 with double-threaded cover screws Equipment: Switch: 3P + N + PE Cable entry/connection option: Lower part can be rotated 180° Connection from above and below possible 2 x M25 above or below (locked) 1 x M25 and 1 x M32 above or below (locked)
| Property | Value |
| IEC current: | 16 A |
| UL/CSA current (if UL version required): | 20 A |
| Number of poles: | 4 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | no |
| Fuses: | mixed |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| Time setting: | 9 h |
| Identification colour: | blue |
| Protection class (IP): | IP44 |
| With Residual current circuit breaker: | no |
| Housing material: | plastic |
| Military version: | no |
| Version: | upper and lower part |
