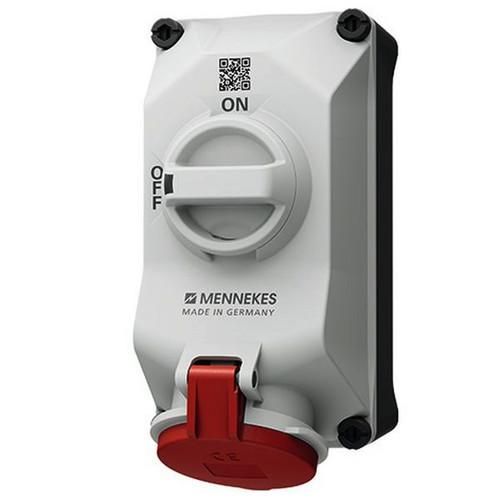

MENNEKES wall socket DUO R 32A 5P 6h 400V IP44 X-CONTACT switchable locked wired ready for connection highly heat-resistant contact carrier nickel-plated contacts plastic housing: dimensions 225x118 mm (L x W) lockable with padlock upper part grey RAL 7035 lower part black RAL 9005 with double thread cover screws equipment: load-break switch 3P + N + PE cable entry: lower part can be rotated 180° connection from above and below possible 2 x M25 above or below (locked) 1 x M25 and 1 x M32 above or below (locked)
| Property | Value |
| IEC current: | 32 A |
| UL/CSA current (if UL version required): | 30 A |
| Number of poles: | 5 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | no |
| Fuses: | mixed |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Identification color: | red |
| Protection class (IP): | IP44 |
| With residual current device: | no |
| Housing material: | plastic |
| Military version: | no |
| Design: | Lower part and upper part |
Features
HAB
5703506G DUO R 32A5P6h 400V IP44
Manufacturer
HAN
5703506G
GTIN
4015394297970
Version
Bottom and top
IEC current
32 A
Identification color
Red
Military version
No
Number of poles
5
IP protection)
IP44
Voltage according to EN 60309-2
400 V (50+60 Hz) red
UL/CSA current rating (if UL version required)
30A
Time position
6 hours
Housing material
Plastic
