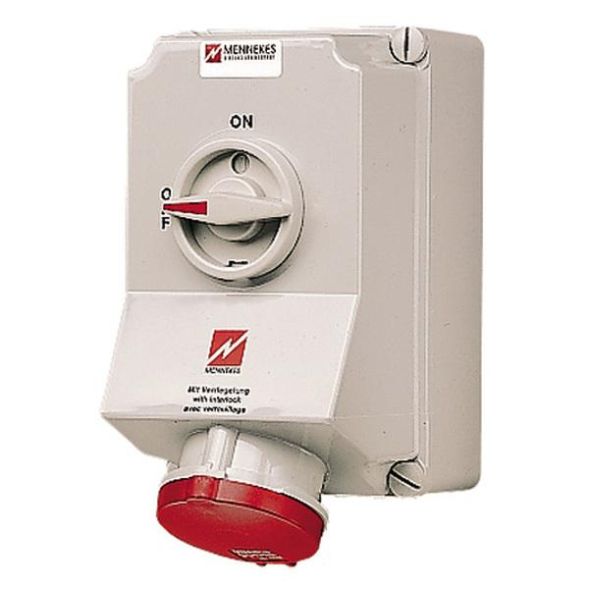

63A4P 6H400V wall socket DUO IP 44 HW/VN with box terminal and X-CONTACT switch 3P with additional auxiliary contacts (1x normally closed, 1x normally open) (40147000 + 40157000) Cable entries: 1x M25 top right additionally
| Property | Value |
| IEC current: | 63 A |
| UL/CSA current (if UL version required): | 60 A |
| Number of poles: | 4 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | no |
| Protection: | mixed |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Identification color: | red |
| Protection class (IP): | IP44 |
| With residual current device: | no |
| Material of the housing: | Plastic |
| Military version: | no |
| Version: | Lower part and upper part |
Features
HAB
DUO 63A 4-pole 6h 400V IP44
Manufacturer
HAN
5956AB
GTIN
4015394030621
Version
Bottom and top
IEC current
63 A
Identification color
Red
Military version
No
Number of poles
4
IP protection)
IP44
Voltage according to EN 60309-2
400 V (50+60 Hz) red
UL/CSA current rating (if UL version required)
60A
Time position
6 hours
Housing material
Plastic
