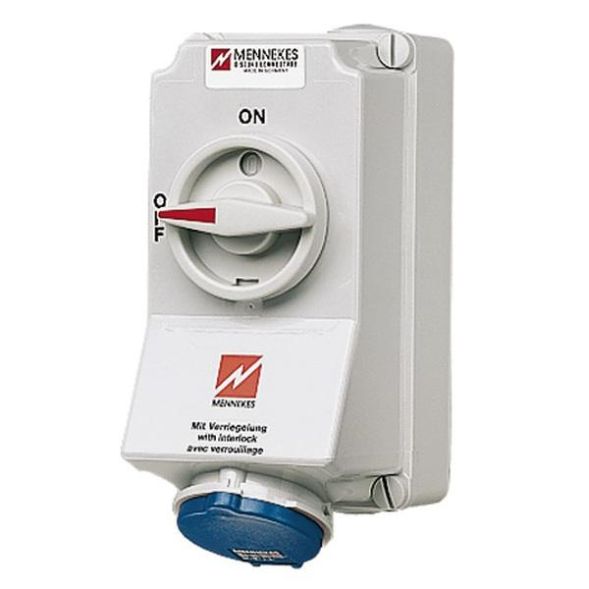

Wall socket DUO, 16A3p 6H230V, IP44 housing 225 X 118 mm switch 3P with additional auxiliary contacts (1X S and 1X OE) 40122000
| Property | Value |
| IEC current: | 16 A |
| UL/CSA current (if UL version required): | 20 A |
| Number of poles: | 3 |
| Switch: | mechanical locking |
| Empty spaces on Mounting rail: | no |
| Fuse protection: | mixed |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| Time setting: | 6 h |
| Identification colour: | blue |
| Protection class (IP): | IP44 |
| With residual current device: | no |
| Housing material: | plastic |
| Military version: | no |
| Version: | Lower and upper part |
Features
HAB
DUO 16A 3-pole 6h 230V IP44
Manufacturer
HAN
7002AD
GTIN
4015394032427
Version
Bottom and top
IEC current
16A
Identification color
Blue
Military version
No
Number of poles
3
IP protection)
IP44
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
UL/CSA current rating (if UL version required)
20A
Time position
6 hours
Housing material
Plastic
