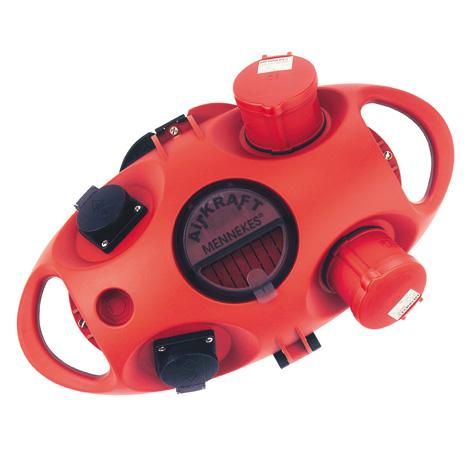

AirKRAFT socket combination, IP44 Wired ready for connection Protection class IP 44 Housing: 1 AMAPLAST housing black (similar to RAL 9005) and hinged device cover (red) Protection under transparent operating flap (4TE) Equipment:/Protection: Pos.01 2 CEE sockets 16A 5p 400V Pos.02 2 Schuko sockets 16A 2p+E 230V without protection Cable entries: closed at the top, for breaking out 1x M32, 1x M25, 2x M20 1x feedthrough for compressed air connection closed at the side, for breaking out 1x M25 including mounting eyelet set (102070)
| Feature | Value |
| CEE socket - 16 A: | 2x16A5p400V |
| CEE socket - 32 A: | without |
| CEE socket - 63 A: | without |
| CEE socket - 125A: | without |
| Number of SCHUKO sockets: | 2 |
| Width: | 285 mm |
| Height: | 433 mm |
| Depth: | 184 mm |
| Protection: | other |
| FI circuit breaker: | other |
| Feed-in/connection option: | 1 line (spur line) |
| Handling: | can be suspended |
| Housing material: | plastic |
| Protection class (IP): | IP44 |
| Military version: | no |
| Color: | red |
