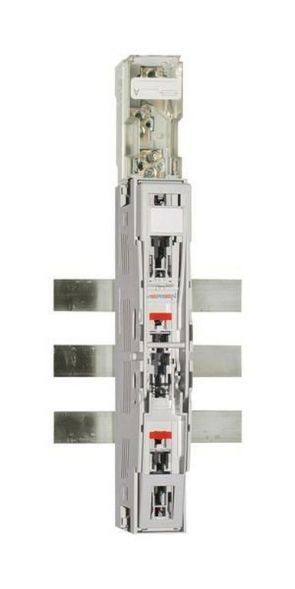

MULTIVERT NH fuse switch-disconnectors fulfill all the functions of an NH fuse switch-disconnector. The construction is designed for direct mounting on busbars in a three-pole arrangement. The three-pole MULTIVERT 160A/60mm switch-disconnectors can be mounted directly on 60mm busbar systems. MULTIVERT 160A switch-disconnectors are designed for NH fuse inserts in accordance with IEC/EN 60269-2,0636-2, size 00, 160A. The system is a modular system in which the various products can be optimally combined. MULTIVERT enables the user to install quickly and easily as well as offering a high level of safety during installation and maintenance. All MULTIVERT can be locked or sealed with a padlock when closed. This version with 3 screws M8/3 clamps 4 to 70mm² is delivered together with cable cover MZ00KH and is suitable for cable outlet from above.
| Property | Value |
| Number of poles: | 3 |
| Weight: | 1.38 |
| Weight unit: | KG |
| Cable entry: | other |
| Rated continuous current Iu: | 160 A |
| Conditional rated short-circuit current Iq: | 50 kA |
| Protection class (IP), front: | IP20 |
| Suitable for fuse links: | NH00 |
| Connection type main circuit: | Rail connection |
| Design of the actuating element: | Cover handle |
| Suitable for busbar construction: | yes |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Position of the actuating element: | front |
| Brief description: | Fuse switch strip NH size 00 AC690V 160A 3-pole 60mm SaS M8 clamp at the top |
