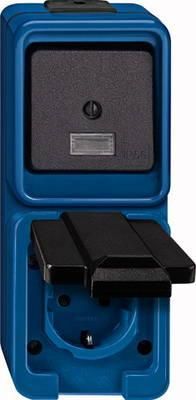

SCHUKO socket: 16 A, AC 250 V. Combined with changeover switch: 16 AX, AC 250 V. With cable entries that can be broken out on all sides. The inserts can be exchanged for other devices in the impact-resistant range. With screw terminals as connection terminals in accordance with 0620 Part 1.
Scope of delivery: With 2 cable entries.
Color: blue.
| Property | Value |
| Color: | blue |
| Socket design: | SCHUKO |
| Number of sockets: | 1.0 |
| Switch design: | Changeover switch |
| Suitable for protection class (IP): | IP44 |
| Socket rated current: | 16.0 A |
| Rated current: | 16.0 A |
| Nominal voltage: | 250.0 V |
| Mounting type: | Surface-mounted |
| Halogen-free: | yes |
| Operating type: | Rocker/button |
| Mounting direction: | vertical |
| Mounting type: | Mounting with screw |
| With lighting: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 5002.0 |
| Residual current protection: | no |
| Device width: | 70.0 mm |
| Device height: | 170.0 mm |
| Device depth: | 60.0 mm |
| With fine fuse: | no |
| Transparent: | no |
| Surge protection: | no |
| Number of active contacts (round): | 2.0 |
| Number of active contacts (flat): | 0.0 |
| Min. depth of the device socket: | 61.0 mm |
Features
Number of sockets
1 socket
Field of application
Insert Module Type
Socket
Electrical wiring
Surface-mounted Switch
Finish
Plastic
Color
Blue
With lighting
No
Manufacturer
HAN
227875
GTIN
4011281142453
Number of active contacts (approx.)
2.0
Surface finish
Frosted
Design of the switch
Changeover switch
Operating mode
Rocker/Button
Mounting type
Fastening with screw
Rated current
16.0A
Color
Residual current protection
No
Suitable for protection class (IP)
IP44
Device width
70.0 mm
Device height
170.0 mm
Device depth
60.0 mm
Halogen free
Yes
Min. depth of the device box
61.0 mm
With micro fuse
No
Mounting type
Surface-mounted
Mounting direction
Vertical
Nominal voltage
250.0V
Surface
Untreated
RAL number (similar)
5002.0
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
