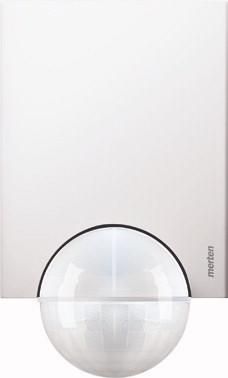

Motion detector for outdoor use. 220 degree area monitoring for larger house fronts and areas of the house. 12 V version. With integrated interface for expansion with a radio module (wireless connection of several devices). -360 degree close protection zone (approx. 4 m radius). -Large connection space and plug-in system. -Looping possible. -LED function display for quick alignment at the installation location. -Control elements are protected under the easily accessible cover plate. -Flexibly adjustable sensor head. -Hiding individual lens areas possible. Wall and ceiling mounting without additional accessories. Fastening to outside/inside corners and stationary pipes with a mounting bracket. Functions: With the integrated radio module, the following functions can be implemented via radio: Permanently ON, Permanently OFF and AUTOMATIC. Supply voltage: DC 12 V. Switch contact: potential-free. Max. switching current: 5 A, DC 12 V. 5 A, AC 230 V, cos Phi = 1. Own consumption: < 1 W. Detection angle: 220 degrees. Range: max. 16 m. Number of levels: 7. Number of zones: 112 with 448 switching segments. Light sensor: continuously adjustable from 3-1000 lux. Time: 1 s to approx. 8 min in 6 levels. Sensitivity: continuously adjustable. Sensor head setting for wall mounting: 9 degrees up, 24 degrees down, 12 degrees right/left, +/-12 degrees axial. Sensor head setting for ceiling mounting: 4 degrees up, 29 degrees down, 25 degrees right/left, +/-8.5 degrees axial. EC directives: Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.
Protection class: IP 55. Dimensions: 151x93x71 mm (HxWxD).
Accessories:
Radio module for ARGUS 220 motion detector 565495.
Mounting bracket 565291/92/93.
Capacitor 542895.
Scope of delivery: With cover plate and segments to limit the detection area, screws and dowels.
Color: polar white.
| Property | Value |
| Depth: | 71.0 mm |
| Width: | 93.0 mm |
| Height: | 151.0 mm |
| Version: | Motion detector |
| Color: | white |
| Rated voltage: | 12.0 V |
| RAL number (similar): | 9010.0 |
| Material: | Plastic |
| Mounting type: | Surface-mounted |
| Response brightness: | 3.0 to 1000.0 lx |
| Protection class (IP): | IP55 |
| Type of voltage: | DC |
| Max. Range to one side: | 14.0 m |
| Scan angle: | 220.0 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 1.0 s |
| Max. Duty cycle: | 8.0 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | -20.0 to 25.0 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence range: | 50.0 m² |
| Max. frontal range: | 16.0 m |
| Max. Inrush current: | 5.0 A |
| Sensor type: | passive infrared |
| Optimal mounting height: | 2.5 m |
| Surface finish: | glossy |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 28.0 m |
| Number of switching zones: | 112.0 |
| Switch-off delay: | 480.0 s |
| Switch-on delay: | 0.0 s |
| Detection angle horizontal: | 0.0 to 220.0 ° |
| Sensor swivel range, vertical: | -24.0 to 9.0 ° |
| Sensor swivel range, horizontal: | -12.0 to 12.0 ° |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | yes |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Extension input: | no |
| Forced switching on: | no |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Impact resistance: | IK02 |
| Min. inrush current: | 0.0 A |
