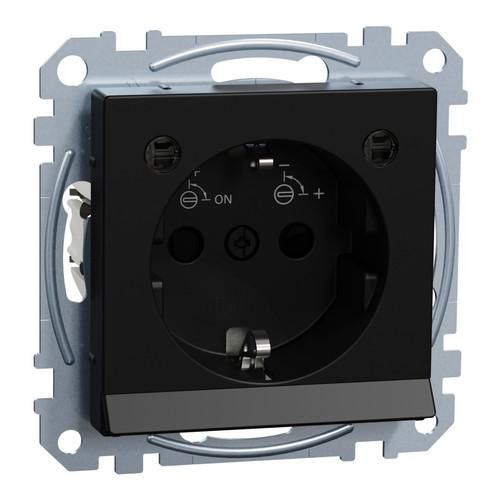

MEG2304-0403 light outlet black matt system M socket SCHUKO manufacturer article number: MEG2304-0403, manufacturer article name: light outlet black matt system M
| Property | Value |
| Version: | SCHUKO |
| RAL number (similar): | 9005.0 |
| Number of units: | 1.0 |
| Color: | black |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250.0 V |
| Nominal current: | 16.0 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50.0 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Printing/marking: | other |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | claw/screw fastening |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | painted |
| Surface finish: | matt |
| Number of switchable sockets: | 0.0 |
| Device width: | 75.0 mm |
| Device height: | 75.0 mm |
| Device depth: | 53.0 mm |
| Insulated installation: | yes |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | yes |
| Impact resistance: | IK03 |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 1.0 |
| Number of active contacts (flat): | 0.0 |
| With signal lamp: | yes |
| Number of phases: | 1.0 |
| Antibacterial treatment: | no |
| Min. depth of device box: | 28.0 mm |
Features
HAB
Light outlet black matt System M
Manufacturer
HAN
MEG2304-0403
GTIN
4042811231989
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1.0
Number of phases
1.0
Number of active contacts (approx.)
1.0
Printing/marking
Other
Version
SCHUKO
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Frequency
50.0Hz
Suitable for protection class (IP)
IP20
Device width
75.0 mm
Device height
75.0 mm
Device depth
53.0 mm
Halogen free
Yes
Insulated installation
Yes
Min. depth of the device box
28.0 mm
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
Yes
With signal lamp
Yes
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250.0V
Rated current
16.0A
Surface
Painted
RAL number (similar)
9005.0
Impact resistance
IK03
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
