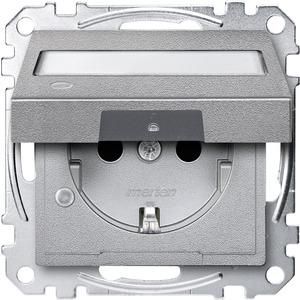

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). The green LED lights up when the mains voltage is applied. Features: -Front-mounted QuickFlex additional modules can be retrofitted without dismantling the socket. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals. Accessories: ==>Large S...
| Property | Value |
| Design: | SCHUKO |
| Number of units: | 1.0 |
| Color: | Aluminum |
| Suitable for protection class (IP): | IP20 |
| Rated voltage: | 250.0 V |
| Rated current: | 16.0 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | yes |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | yes |
| Frequency: | 50.0 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | painted |
| Surface finish: | matt |
| Number of switchable sockets: | 0.0 |
| Device width: | 71.0 mm |
| Device height: | 71.0 mm |
| Device depth: | 47.0 mm |
| Insulated installation: | yes |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | yes |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Round protective conductor contact: | no |
| Number of active contacts (round): | 0.0 |
| Number of active contacts (flat): | 0.0 |
| With signal lamp: | yes |
| Number of phases: | 1.0 |
| Antibacterial treatment: | no |
Features
Manufacturer
HAN
MEG2313-0460
GTIN
4042811139735
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1.0
Number of phases
1.0
Number of active contacts (approx.)
0.0
Version
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Frequency
50.0Hz
Suitable for protection class (IP)
IP20
Device width
71.0 mm
Device height
71.0 mm
Device depth
47.0 mm
Halogen free
Yes
Insulated installation
Yes
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
Yes
With hinged lid
Yes
With orientation lighting
No
With signal lamp
Yes
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250.0V
Rated current
16.0A
Surface
Painted
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
Yes
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
