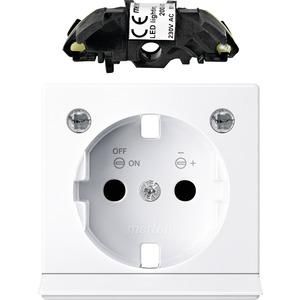

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). For retrofitting sockets with a QuickFlex base. Warm white LEDs illuminate an area below the socket. The illuminated area can be optimally adjusted by adjusting the light output. When it is dark, the LED lighting switches on automatically and off again when the ambient light is sufficient. The brightness threshold can be conveniently set from the front and without dismantling the central plate. The automatic function can also be switched off on the central plate so that the lighting remains off, e.g. while you are on holiday.
Material: brilliant thermoplastic, antibacterial. Smooth and self-disinfecting surface with antibacterial effect. Color: similar to RAL 9016.
Color: active white glossy.
| Property | Value |
| Version: | SCHUKO |
| RAL number (similar): | 9016.0 |
| Number of units: | 1.0 |
| Color: | white |
| Suitable for protection class (IP): | IP20 |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| With fine fuse: | no |
| Fastening type: | claw/screw fastening |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | other |
| Surface finish: | glossy |
| Number of switchable sockets: | 0.0 |
| Device width: | 55.0 mm |
| Device height: | 55.0 mm |
| Device depth: | 42.0 mm |
| Insulated installation: | yes |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | yes |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 3.0 |
| Number of active contacts (flat): | 0.0 |
| With signal lamp: | yes |
| Number of phases: | 1.0 |
| Antibacterial treatment: | yes |
