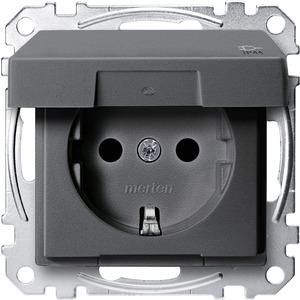

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). Properties: -Front-mounted retrofitting of QuickFlex additional modules without dismantling the socket. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With screw lift terminals for rigid and flexible conductors up to 4 mm2.
Scope of delivery: Socket with sealing ring.
Material: Thermoplastic, matt.
Color: anthracite.
| Property | Value |
| Version: | SCHUKO |
| RAL number (similar): | 7024.0 |
| Number of units: | 1.0 |
| Color: | anthracite |
| Suitable for protection class (IP): | IP44 |
| Nominal voltage: | 250.0 V |
| Rated current: | 16.0 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | yes |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50.0 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Screw terminal |
| With fine fuse: | no |
| Mounting type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Rated residual current: | 0.0 mA |
| Number of modules (with modular design): | 0.0 |
| Number of switchable sockets: | 0.0 |
| Device width: | 73.0 mm |
| Device height: | 73.0 mm |
| Device depth: | 47.0 mm |
| Insulated installation: | yes |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK03 |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 1.0 |
| Number of active contacts (flat): | 0.0 |
| With signal lamp: | no |
| Number of phases: | 1.0 |
| Antibacterial treatment: | no |
| Min. depth of device box: | 40.0 mm |
Features
Color
Anthracite
Manufacturer
HAN
MEG2414-0414
GTIN
4042811141066
Lockable
No
Connection type
Screw terminal
Antibacterial treatment
No
Number of Units
1.0
Number of modules (for modular construction)
0.0
Number of phases
1.0
Number of active contacts (approx.)
1.0
Version
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Claw/screw fastening
Rated residual current
0.0mA
Color
Residual current protection
No
Frequency
50.0Hz
Suitable for protection class (IP)
IP44
Device width
73.0 mm
Device height
73.0 mm
Device depth
47.0 mm
Halogen free
Yes
Insulated installation
Yes
Min. depth of the device box
40.0 mm
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
Yes
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250.0V
Rated current
16.0A
Surface
Untreated
RAL number (similar)
7024.0
Impact resistance
IK03
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
