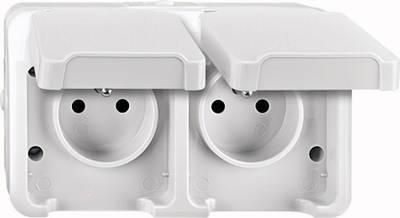

Increased contact protection. Arranged horizontally and wired together. Can be labeled with a label insert. Surface-mounted. With plug-in terminals.
Protection class: IP 44. Dimensions: approx. 83 x 73 x 57 mm.
Accessories:
Label insert AQUASTAR MEG3952-8000.
Double inlet AQUASTAR MEG3961-80.
Connector AQUASTAR MEG3963-80.
Pipe inlet AQUASTAR MEG3964-8029.
Duct inlet AQUASTAR MEG3965-80.
Slide valve with nozzle AQUASTAR MEG3962-8029.
Color: light gray.
| Property | Value |
| RAL number (similar): | 7035.0 |
| Number of units: | 2.0 |
| Color: | gray |
| Suitable for protection class (IP): | IP44 |
| Nominal voltage: | 250.0 V |
| Nominal current: | 16.0 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | yes |
| Mounting type: | Surface-mounted |
| Text field/labeling area: | yes |
| Frequency: | 50.0 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Mounting with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Rated residual current: | 0.0 mA |
| Number of modules (with modular design): | 0.0 |
| Number of switchable sockets: | 0.0 |
| Device width: | 83.0 mm |
| Device height: | 141.0 mm |
| Device depth: | 56.0 mm |
| Insulated installation: | yes |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK04 |
| Transparent: | no |
| Protective contact: | no |
| Protective conductor contact round: | yes |
| Number of active contacts (round): | 2.0 |
| Number of active contacts (flat): | 0.0 |
| With signal lamp: | no |
| Number of phases: | 2.0 |
| Antibacterial treatment: | no |
| Min. depth of the device box: | 0.0 mm |
Features
Number of sockets
2 sockets
Field of application
Insert Module Type
Socket
Finish
Plastic
Color
Grey
Manufacturer
HAN
MEG2520-8029
GTIN
4042811179991
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
2.0
Number of modules (for modular construction)
0.0
Number of phases
2.00
Number of active contacts (approx.)
2.0
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Fastening with screw
Rated residual current
0.0mA
Color
Residual current protection
No
Frequency
50.0Hz
Suitable for protection class (IP)
IP44
Device width
83.0 mm
Device height
141.0 mm
Device depth
56.0 mm
Halogen free
Yes
Insulated installation
Yes
Min. depth of the device box
0.0 mm
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
Yes
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Surface-mounted
Nominal voltage
250.0V
Rated current
16.0A
Surface
Untreated
RAL number (similar)
7035.0
Impact resistance
IK04
Protective contact
No
Protective conductor contact round
Yes
Special power supply
Without special power supply
Text field/label area
Yes
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
