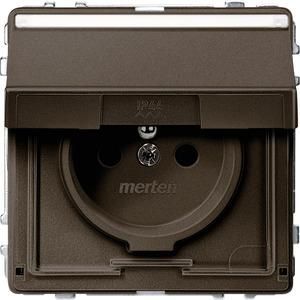

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). Properties: -Front-mounted retrofitting of QuickFlex additional modules without dismantling the socket. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With screw lift terminals for rigid and flexible conductors up to 4 mm2.
Accessories:
Large labeling field with tactile contrast symbol for rockers and sockets with labeling field 434791/92/93/94.
Color: dark brazil.
| Property | Value |
| Version: | SCHUKO |
| Number of units: | 1.0 |
| Color: | other |
| Suitable for protection class (IP): | IP44 |
| Nominal voltage: | 250.0 V |
| Nominal current: | 16.0 A |
| With increased Contact protection: | yes |
| With hinged lid: | yes |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50.0 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | other |
| With fine fuse: | no |
| Fastening type: | claw/screw fastening |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface finish: | glossy |
| Number of sockets switchable: | 0.0 |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | yes |
| Number of active contacts (round): | 2.0 |
| Number of active contacts (flat): | 0.0 |
| With signal lamp: | no |
| Number of phases: | 1.0 |
| Antibacterial treatment: | no |
Features
Manufacturer
HAN
MEG2612-7215
GTIN
4042811141837
Connection type
Other
Antibacterial treatment
No
Number of Units
1.0
Number of phases
1.0
Number of active contacts (approx.)
2.0
Version
Surface finish
Glittering
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Frequency
50.0Hz
Suitable for protection class (IP)
IP44
Halogen free
Yes
With loop-through function
No
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
Yes
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250.0V
Rated current
16.0A
Protective contact
Yes
Protective conductor contact round
Yes
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
