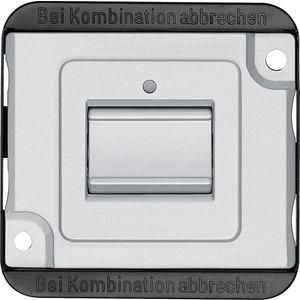

MERTEN MEG3106-7060 On/off control switch insert 1-pole matt silver

Description

Features

Reviews

Features: -Front-side retrofitting of QuickFlex lighting modules without dismantling the switch. -Front-side measuring and test contacts, accessible without dismantling the switch. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals.

Scope of delivery: With red 230 V LED light pendant for switches/buttons. Version: 10 AX, AC 250 V, matt silver.

Property	Value
Color:	Silver
Suitable for protection class (IP):	IP20
Circuit type:	Toggle switch
Operating type:	Rocker/button
Number of rocker switches:	1.0
Mounting type:	Flush-mounted
Push button:	no
Composition:	Base element with central cover plate
Fastening type:	Claw/screw fastening
Material:	Metal
Material quality:	Aluminum
Halogen-free:	yes
Surface finish:	matt
Nominal voltage:	250.0 V
Switching current for fluorescent lamps:	10.0 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Plug terminal
Lighting:	yes
Lighting type:	LED replaceable
Lighting function:	illuminated when switched on
Rated current:	10.0 A
Installation depth:	28.0 mm
Device depth:	40.0 mm
Device width:	86.0 mm
Device height:	86.0 mm
With mounting plate:	yes
Text field/labeling area:	no
