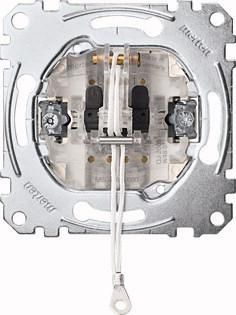

Features: -Front-side retrofitting of QuickFlex lighting modules without dismantling the switch. -Front-side measuring and test contacts, accessible without dismantling the switch. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals.
To be completed with:
Central plate with inspection window for pull switch system M MEG3380-03.. /-04..
Accessories:
LED lighting module for switches/buttons MEG3901-0000, MEG3901-0006, MEG3921-0000. Version: 10 A, AC 250 V.
| Property | Value |
| Version: | Single button |
| Suitable for protection class (IP): | IP20 |
| Operating method: | Pull cord |
| Mounting type: | Flush-mounted |
| Number of rocker switches: | 1.0 |
| Halogen-free: | yes |
| Text field/labeling area: | no |
| Composition: | Basic element |
| Feedback contact: | yes |
| With lighting: | no |
| Fastening type: | Claw/screw fastening |
| Material: | other |
| Material quality: | other |
| Surface finish: | matt |
| Nominal voltage: | 250.0 V |
| Print: | without |
| Rated current: | 10.0 A |
| Device width: | 73.0 mm |
| Device height: | 73.0 mm |
| Device depth: | 37.0 mm |
| Number of poles: | 1.0 |
| Transparent: | no |
| Antibacterial Treatment: | no |
| With signal lamp: | no |
Features
Feedback contact
Yes
Number of actuating rockers
1.0
With lighting
No
Manufacturer
HAN
MEG3184-0000
GTIN
4042811144890
Antibacterial treatment
No
Imprint
Without
Version
Single button
Surface finish
Frosted
Operating mode
Pull cord
Mounting type
Claw/screw fastening
Rated current
10.0A
Suitable for protection class (IP)
IP20
Device width
73.0 mm
Device height
73.0 mm
Device depth
37.0 mm
Halogen free
Yes
With signal lamp
No
Mounting type
Flush-mounted
Nominal voltage
250.0V
Number of poles
1.0
Text field/label area
No
Transparent
No
Material
Other
Material quality
Other
Compilation
Basic element
