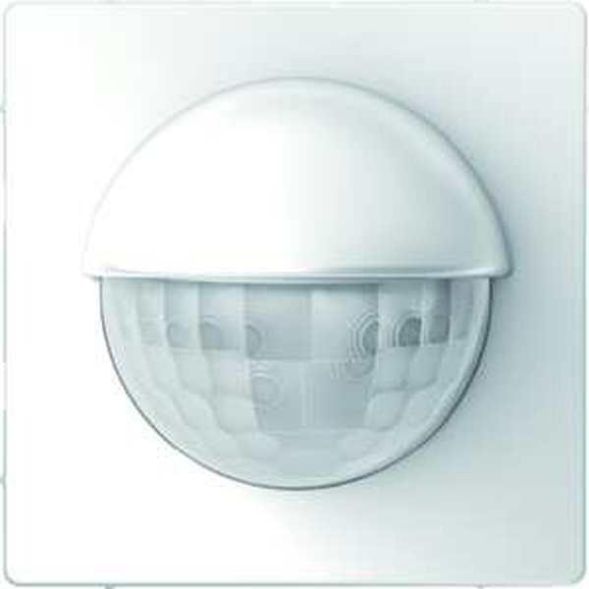

For system design. Motion detector for indoor use with creep-under protection. The sensor module detects moving heat sources (e.g. people) in an adjustable detection range and starts a stairwell lighting time. The sensor module has a light sensor with an adjustable brightness threshold so that the lighting is only switched on below a certain brightness threshold. Switchable presence function. Functions: Brightness-dependent stairwell lighting function: -Electronic switching insert. -Relay switching insert. -Universal dimmer insert. -Control insert 1-10 V. -DALI control insert. Brightness-dependent stairwell lighting function with channel 1, brightness-independent stairwell lighting function with channel 2: -Electronic switching insert, 2-way. -Relay switching insert, 2-way. -Universal dimmer insert, 2-way. Detection range: 180 degrees. Number of levels: 6. Number of zones: 46. Recommended installation height: 1.1 m. Range: 8 m right/left, 12 m forward. Sensitivity: continuously adjustable. Light sensor: continuously adjustable from approx. 10 to approx. 1000 lux. Time: continuously adjustable from approx. 10 s to approx. 30 min.
To be completed with:
Central station insert MEG5190-0000.
Electronic switching insert MEG5151-0000.
Electronic switching insert, 2-way MEG5152-0000.
Relay switching insert MEG5161-0000.
Relay switching insert, 2-way MEG5162-0000.
Universal dimmer insert MEG5171-0000.
Universal dimmer insert, 2-way MEG5172-0000.
Control insert 1-10 V MEG5180-0000.
DALI control insert MEG5185-0000.
Material: brilliant thermoplastic.
Color: Lotus white.
| Property | Value |
| Installation height: | 1.1 m |
| Installation type: | Flush-mounted |
| Version: | Presence detector |
| Constant light control: | no |
| Adjustable response sensitivity: | yes |
| Horizontal detection angle: | 180 ° |
| Creep under protection/rear field monitoring: | no |
| Min. duty cycle: | 10 s |
| Max. duty cycle: | 30 min |
| Max. range to one side: | 8 m |
| Max. Frontal range: | 12 m |
| HVAC control: | no |
| Response brightness adjustable: | yes |
| Networkable: | yes |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | yes |
| Suitable for protection class (IP): | IP20 |
| Suitable for wireless transmission: | no |
| Color: | white |
| Staircase monitoring: | yes |
| Halogen-free: | yes |
| Animal corridor: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| RAL number (similar): | 9016 |
| Self-learning switch-off delay: | no |
| Operating mode switch: | no |
