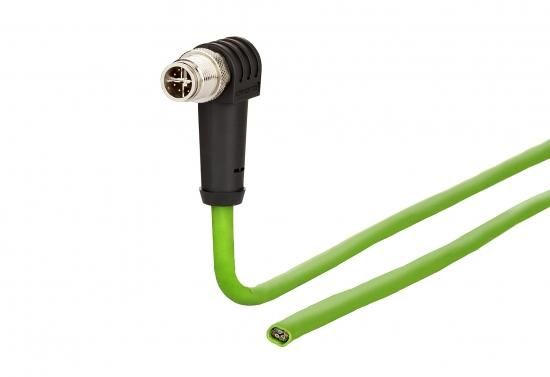

Shielded M12 Ethernet connection cable, Cat.6, A, 8-pin, X-coded, side 1: M12 connector, angled, coding position 135°, side 2: free cable end, cable molded to M12 connector, cores 4x2xAWG26/7, overall shield Cu braid, tinned, cable green, PUR, standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m, other cable lengths on request
| Property | Value |
| Sheath color: | green |
| Anti-kink sleeve: | molded |
| Locking lever protection: | no |
| Color of the anti-kink sleeve: | black |
| Flame-retardant: | according to EN 60332-3-24 |
| Halogen-free according to EN 60754-1/2: | yes |
| Oil-resistant according to EN 60811-404: | yes |
| Suitable for drag chains: | no |
| Cable construction: | 4x2 |
| AWG cross section: | 26 |
| Cable type: | SF/UTP |
| Pin assignment: | 1:1 |
| Protection class (IP): | IP65 |
| Category: | 6A (IEC) |
| Lenght: | 1.00 |
| Connector type connection 1: | M12 |
| Material of the connector housing connection 1: | Metal |
| Connector housing connection 2: | without |
| Connector housing material connection 2: | not applicable |
Features
Cable type
SF/UTP
Oil-resistant according to EN 60811-404
Yes
Category
6A (IEC)
HAB
1.0m M12 connector angled 8-pin 135°
Manufacturer
HAN
142M2XB0010
GTIN
4251394608822
Length
1.00
Coat color
Green
