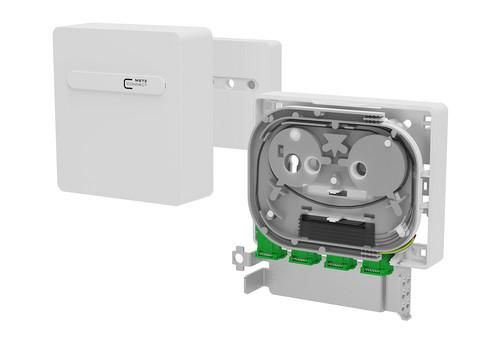

Compact fiber optic termination point for the FITH area, prepared to accommodate micro tubes including gas blockers, sealable or lockable with a safety screw, equipped with couplings with laser shutter and pigtails, pigtails with single-mode fiber OS2, E9/125 µm, IEC 60793-2-50 B.1.3 and B.6_a, bend-resistant according to ITU-T G.657.A1, compatible with ITU-T G.652.D, pigtails cleaned and plugged into couplings, unused cutouts closed with blind plugs, for surface mounting and with integrated clips for mounting on mounting rails in two directions, pivoting, removable splice cassette for up to 8 crimp splice protectors, cover can be removed without tools, plug direction 90°, color of the cover parts pure white RAL 9010, variants: equipped with SC APC, SC UPC, LC-D APC or LC-D UPC couplings and matching pigtails, variants also available in Grade B
| Property | Value |
| Duct installation: | no |
| Floor tank/underfloor installation: | no |
| Mounting type: | screw |
| With socket/coupling: | yes |
| Color: | white |
| RAL number: | 9010 |
| Central plate: | yes |
| With cover frame: | yes |
| With text field: | no |
| Cable strain relief: | no |
| Outlet direction: | downwards |
| Dust protection: | Shutter |
| Surface mounting: | yes |
| Flush mounting: | no |
| Number of sockets/couplings: | 4 |
| Connector type: | SC |
| Winding capacity: | yes |
| Device width: | 108 mm |
| Device depth: | 39 mm |
| Device height: | 118 mm |
