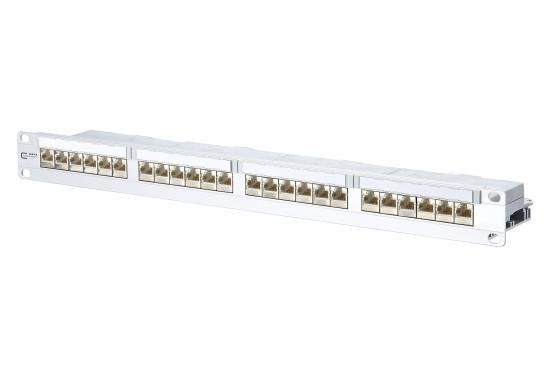

19 inch 1U carrier made of silver anodized aluminum, with 24 individually shielded RJ45 sockets, Cat.6, A Component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validated Compliance with class E, A up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 tested: component up to 600 MHz, link up to 800 MHz, for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, four module housings made of die-cast zinc, each with six RJ45 sockets, the wire pairs can be led to the LSA terminal without unravelling the stranding, connection of the 2- to 4-pair data cables to LSA insulation displacement terminals (AWG 26/1-22/1). With marking of the wire colors according to T568A. Viewing window for enclosed label inserts, additional strain relief possible using cable ties, modules connected using a ground rail, including 30 cm ground cable
| Feature | Value |
| Mounting type: | 482.6 mm (19 inch) installation |
| Height: | 44.45 |
| Width: | 482.6 |
| Depth: | 103.3 |
| Number of sockets/couplings: | 24 |
| Suitable for number of sockets/couplings: | 24 |
| Connector type: | RJ45 8 (8) |
| Shielded: | yes |
| Category: | 6A (IEC) |
| Connection type: | LSA |
| Number of height units (HE): | 1 |
| Color: | Silver |
