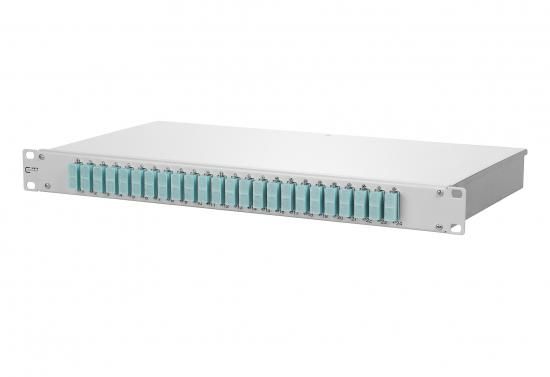

19 inch, 1U fiber optic patch panel for permanent installation, equipped with SC-D couplings with SC pigtails, pigtails with compact core 0.9 mm, 12 colors, secondary and primary coating of the same color, length 2.0 m, pigtails inserted and set off in standard splice cassette with crimp splice holders, pigtails cleaned and inserted into couplings, lightweight aluminum construction with sheet steel front panel (gray or black), unused cutouts closed with blind plugs, removable front panel for easy coupling assembly, service-friendly, screwed cover, several cable entry options on the rear (attachment with PG13, 5, PG16 and PG21 or M20 and M25), a PG16 cable entry is included, variants: equipped with 6, 12 or 24 SC-D couplings and pigtails, each blue (OS2), lime green (OM5), violet (OM4), aqua (OM3) or 6, 12 or 24 SC-D APC couplings and pigtails each green (OS2)
| Property | Value |
| Outside connector type: | SC-Duplex |
| Inside connector type: | SC-Duplex |
| Color: | gray |
| RAL number: | 7035 |
| Mounting type: | 482.6 mm (19 inch) installation |
| Number of height units (HE): | 1 |
| Height: | 44.45 |
| Width: | 482.60 |
| Depth: | 242.50 |
| Suitable for number of couplings/adapters: | 24 |
| With number of couplings/adapters: | 24 |
| With front panel: | yes |
| With housing: | yes |
| With pigtails: | yes |
| Fiber type: | Multimode 50/125 |
| Fiber class: | OM3 |
| APC version: | no |
