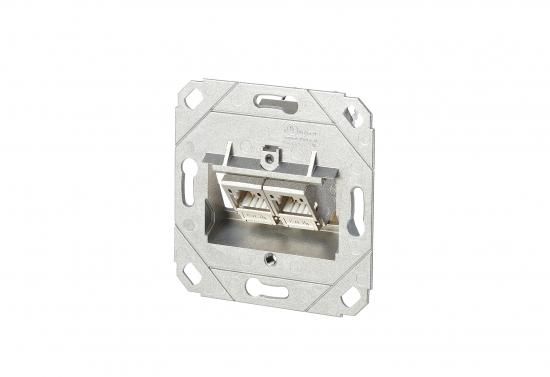

Channel connection unit with C6, Amodul 270°, GHMT Cat.6, A re-embedded PVP validated, Cat.6, A component test according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validated, compliance with class E, A up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, tested: component up to 600 MHz, link up to 800 MHz, for 10GBit Ethernet (IEEE 802.3an), remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT suitable, connection of data cables AWG 26/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, plug-in direction of the module inclined 45° downwards, strain relief with locking clip on the charging piece, compatible with design central pieces of switch ranges (note: 3-port central pieces are currently only available from JUNG), suitable for installation in standard flush-mounted and hollow-wall cups, except for variant 3 port!, variants: 1 port, 2 port, 3 port
| Property | Value |
| Category: | 6A (IEC) |
| Connection type: | Insulation displacement terminal IDC |
| Sockets shielded: | yes |
| Housing shielded: | yes |
| Separate grounding connection: | no |
| With text field: | no |
| Designable: | yes |
| Separate cable strain relief: | yes |
| Surface-mounted: | no |
| Outlet direction: | slanted |
| With dust protection: | yes |
| Terminal resistor: | no |
| Color coding: | yes |
| Device width: | 69.90 |
| Device height: | 69.90 |
| Device depth: | 40.50 |
| Flush-mounted: | yes |
| Duct installation: | yes |
| Floor tank/underfloor installation: | no |
| Mounting type: | screws |
| Composition: | Base element with adapter plate |
| Connector type: | RJ45 8 (8) |
| With sockets/couplings: | yes |
| Suitable for number of sockets/couplings: | 2 |
