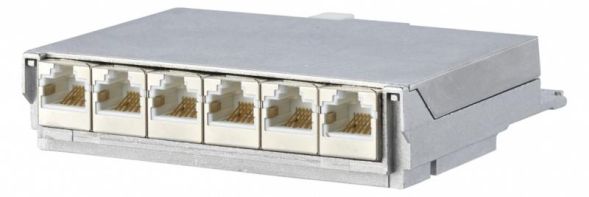

6-way module housing made of die-cast zinc for installation in DIN rail adapters, AP empty housings or 1U 6-way module carriers, GHMT Cat.6 12C-de-embedded certified, compliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1 tested: link up to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, the wire pairs can be led to the LSA terminal without unravelling the stranding, connection of the 2- to 4-pair data lines to LSA insulation displacement terminals (AWG 22-24). With marking of the wire colors according to TIA/EIA 568A, additional strain relief possible using cable ties, including 30 cm grounding cable, grounding bolt M6x10 with nut and toothed washer
| Property | Value |
| Suitable for number of sockets/couplings: | 6 |
| Color: | Silver |
| Mounting type: | other |
| Connector type: | RJ45 8(8) |
| Category: | 6 |
| Connection type: | LSA |
| Number of sockets/couplings: | 6 |
| Height: | 26.1 mm |
| Width: | 105 mm |
| Depth: | 110.3 mm |
| Shielded: | yes |
Features
Shielded
Yes
Category
6
Connector type
RJ45 8(8)
HAB
E-DAT C6 6x8 1U module Cat.6
Manufacturer
HAN
860018-11-E
GTIN
4250184111771
Connection type
LSA
Width
105 mm
Color
Suitable for number of sockets/couplings
6
Height
26.1 mm
Mounting type
Other
Depth
110.3 mm
