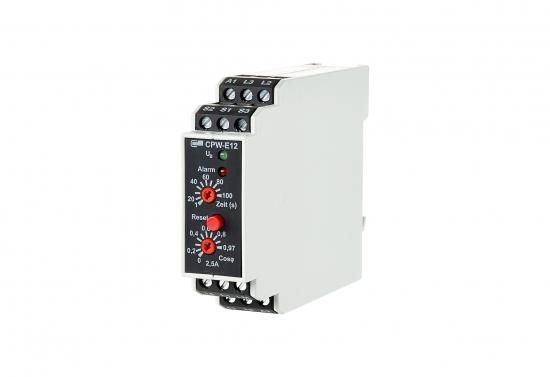

The cosPhi monitor is used to detect underload. The response value and response time are adjustable. It can also be used in conjunction with a frequency converter (frequency 2 to 200 Hz). Monitoring is carried out by detecting the phase shift between current and voltage. This phase angle shifts with the load on a motor. Function settings via bridges S1 - S2 - S3 S1 - S2 open = relay de-energized when underload is present S1 - S2 bridged = relay energized when underload is present S1 - S3 open = with error memory S1 - S3 bridged = without error memory The module can be remotely unlocked using a normally open contact on S1 - S3. When there is an error memory (no bridge across S1-S3), the error message remains until it is acknowledged or until the supply voltage is interrupted. Operating voltage 230 V AC Frequency range 2 to 200 Hz Input / motor voltage 230 V AC / 400 V AC Input / current min. 0.2 A / max. 10 A Input / response value cosPhi 0 to 0.97, adjustable Input / response time 1 to 100 s, adjustable Output 1 changeover contact (SPDT) Output / switching voltage max. 250 V AC Output / continuous current max. 4 A Output / switching frequency 1200 switching cycles/h Display LED green, red Dimensions W x H x D 22.5 x 75 x 95 mm Weight 170 g Operating temperature range 0 °C to +55 °C Storage temperature range -20 °C to +70 °C Protection class housing / terminals IP40 / IP20
| Property | Value |
| Number of the contacts as changeover contact: | 1 |
| Design of the electrical connection: | Screw connection |
| Width: | 22.50 |
| Height: | 75.00 |
| Depth: | 95.00 |
| With removable terminals: | no |
| Rated control supply voltage Us at AC 50 Hz: | 230 |
| Type of voltage for actuation: | AC |
