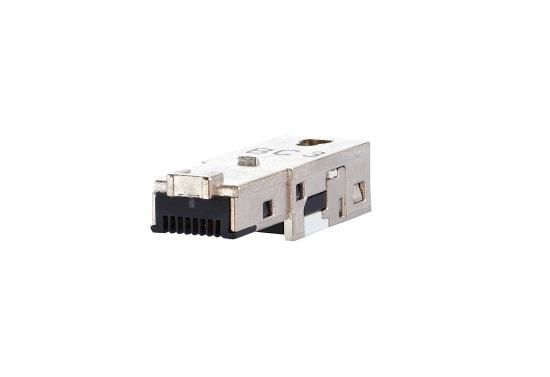

Field-assembled Cat.6 Class EA connector for installation in connector housings IP67 of variants 1, 4, 5, and 14 Compliance with Class EA according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 Suitable for 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT 8-wire field-assembled RJ45 connector for AWG 22 Connection of AWG 26/7 - 22/7 AWG 26/1 - 22/1 possible Solid wire Cu conductor diameter 0.4 - 0.64 mm Stranded wire Cu conductor diameter 0.48 - 0.76 mm Core diameter up to 1.6 mm Cable sheath from 5.5 to 8.5 mm only made from just 2 parts, extremely easy to assemble - no special tools required for connection, industrial-grade zinc die-cast housing, can be used as a test plug on the IP67 side of variants 1, 4, 5, 6 and 14. Variants: T568A, T568B, industry, field-assemblyable Cat.5 plug for installation in IP67 plug housings of variants 1, 4, 5, and 14, 100 MBit suitable according to IEEE 802.3 for remote powering (PoE, PoE plus and UPoE) and HDBaseT, 4-wire field-assemblyable RJ45 plug for AWG 22, connection of AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible, solid wire, Cu conductor diameter 0.4 - 0.64 mm, stranded wire, Cu conductor diameter 0.48 - 0.76 mm, wire diameter up to 1.6 mm, cable sheath of 5.5 up to 8.5 mm consists of only 2 parts extremely simple assembly - no special tools required to connect zinc die-cast housing suitable for industrial use protected locking hook can be used as a test plug on the IP67 side of variants 1, 4, 5, 6 and 14
| Property | Value |
| Suitable for solid conductors: | yes |
| Color: | Silver |
| AWG range: | 26 to 22 |
| Design: | Plug |
| Connector type: | RJ45 8 (8) |
| Shielded: | yes |
| Category: | 6 |
| Connection type: | Insulation displacement terminal IDC |
| Special tools required: | no |
| Suitable for round cables: | yes |
| Suitable for flat cables: | no |
| Suitable for stranded conductors: | yes |
