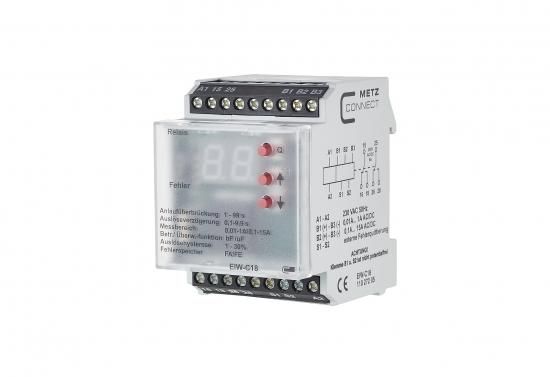

Monitoring of direct or alternating currents in live systems. If the set values are exceeded or not reached, this is indicated and a switching process is triggered. The integrated 7-segment display provides information about the cause of the error. The type of current to be measured (AC or DC), an upper and lower threshold value, the response delay and the error memory (on or off) can be set using manual input on the device. The two current measuring ranges can be selected using the connection terminals. Errors can be acknowledged directly on the device or via an external contact. Variants: 230 V AC or 24 V AC Operating voltage 230 V AC, 50 Hz Operating voltage 24 V AC Current consumption max. 15 mA Current measuring input B1 - B3 0.01 A to 1 A Current measuring input B2 - B3 0.1 A to 15 A Response delay 0.1 s to 9.9 s, adjustable Output 2 changeover contacts (DPDT) Output / switching voltage max. 250 V AC/DC Output / continuous current max. 8 A Mechanical life 3 x 107 switching cycles Electrical life 1 x 105 switching cycles Display / error 2x 7-segment display Display LED green, red Dimensions W x H x D 50 x 69.3 x 60 mm Weight 200 g Operating temperature range -5 °C to +55 °C Storage temperature range -20 °C to +70 °C Protection class housing / terminals IP40 / IP20
| Property | Value |
| Contains DC voltage overcurrent function: | yes |
| DC current window function: | yes |
| Rated control supply voltage Us at AC 50 Hz: | 230 |
| Type of voltage for actuation: | AC |
| Current measuring range: | 0.01 to 15 |
| Min. adjustable response delay time: | 0.1 |
| Max. permissible response delay time: | 9.9 |
| Design of the electrical connection: | screw connection |
| Number of contacts as changeover contact: | 2 |
| External current transformer: | no |
| Width: | 50 |
| Height: | 68 |
| Depth: | 65 |
| With removable terminals: | no |
| 1-phase undercurrent possible: | yes |
| 3-phase undercurrent possible: | no |
| 1-phase overcurrent possible: | yes |
| 3-phase overcurrent possible: | no |
| 1-phase window possible: | yes |
| 3-phase window possible: | no |
| Contains DC undercurrent function: | yes |
