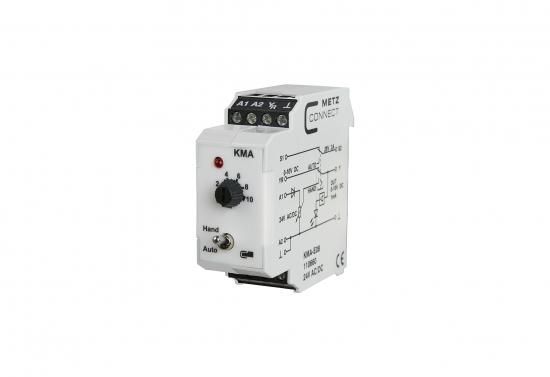

The analog value transmitter serves as a control variable transmitter for manual control variable specification, e.g. mixing flaps, valve positions, temperature values, etc. The module can be controlled by two operating modes, which can be switched using an integrated two-stage switch (MANU, AUTO). The switch position is reported back via the external control contact terminals S1 and S2. The control variable can be set using the potentiometer on the front. The output signal 0 ... 10 V is available at terminal Y. When the switch is in the ZollAUTOZoll position, the control variable is passed through to the control variable output Y without change via terminal YR. Setpoint generator manual control level with feedback LED brightness proportional to the manipulated variable Input / operating voltage 24 V AC/DC Input / current consumption AC 24 mA Input / current consumption DC 19 mA Input / voltage 0 to 10 V DC Output / voltage 0 to 10 V DC Display LED red Dimensions W x H x D 22.5 x 61.3 x 60 mm Weight 70 g Operating temperature range -10 °C to +50 °C Storage temperature range -25 °C to +70 °C Protection class housing / terminals IP40 / IP20
| Property | Value |
| Bidirectional: | no |
| Galvanic isolation: | without |
| Nominal current consumption: | 19 |
