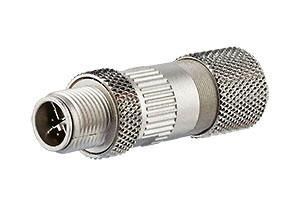

METZ CONNECT MNF881A315-0001 M12 X-coded Cat.6A field-assembly connector

Field-assembly M12 Cat.6, A connector X-coded based on IEC PAS 61076-2-109 for 10GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT, for 8-wire cable connection, for AWG 22, connection of AWG 26/1 - 22/1, AWG 26/7 - 22/7 possible, conductor diameter Cu solid wire 0.4 - 0.64 mm, conductor diameter Cu strand 0.48 - 0.76 mm, wire diameter up to 1.6 mm, cable sheath from 5.0 to 9.7 mm, consists of only 2 parts, extremely simple assembly - can be connected without special tools, industrial-grade zinc die-cast housing, suitable for applications in the railway industry according to data sheet
