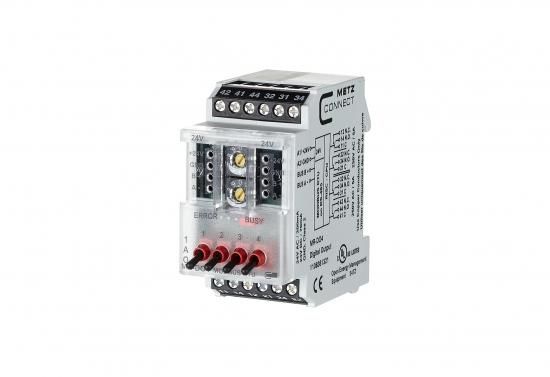

The Modbus module with 4 digital outputs was developed for decentralized switching tasks. It is suitable for switching electrical components, e.g. motors, contactors, lamps, blinds, etc. The relay contacts must be protected by suitable load-dependent measures. The module has a manual control level with which the relays can be switched manually. The outputs can be switched via standard registers using a Modbus master. The module is addressed and the bit rate and parity are set using two address switches on the front or via software. Suitable for decentralized installation on TH35 mounting rails in accordance with IEC 60715 in electrical distribution boards. Protocol Modbus RTU Address range 00 to 99 Bus interface RS485 (two-wire bus) Transfer rate 1200 to 115200 bit/s Operating voltage 24 V AC/DC 10% (SELV) Current consumption 200 mA (AC) / 70 mA (DC) Duty cycle relative 100% Output / contacts 4 x changeover contact (4PDT) Output / switching voltage 250 V AC Output / continuous current 5 A / output Output / switching frequency 360 switching cycles/h Display LED green, red, yellow Dimensions W x H x D 35 x 69.3 x 60 mm Weight 95 g Operating temperature range -5 °C to +55 °C Storage temperature range -20 °C to +70 °C Protection class housing / terminals IP40 / IP20
| Property | Value |
| Local/manual operation: | yes |
| With LED display: | yes |
| Suitable for C load: | no |
| Max. Number of switching outputs: | 4 |
| Rated current: | 5 |
| Rated operating voltage: | 24 |
| KNX bus system: | no |
| Different phases can be connected: | no |
| With bus connection: | yes |
| Removable bus module: | no |
| Min. Depth of the device box: | 60.00 |
| Modular expansion option: | no |
| Protection class (IP): | IP20 |
| KNX radio bus system: | no |
| Radio bus system: | no |
| LON bus system: | no |
| Powernet bus system: | no |
| Other bus systems: | other |
| Radio bidirectional: | no |
| Mounting type: | REG |
| Width in division units: | 2 |
