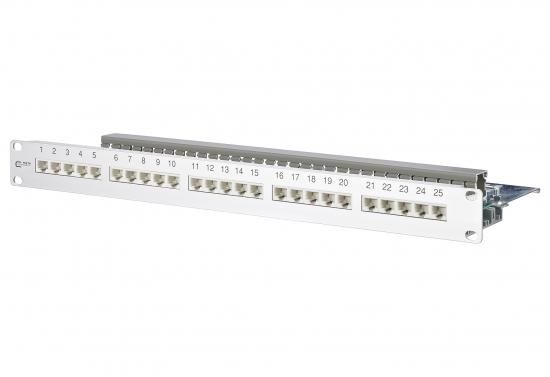

19 inch 1U Cat.3 patch panel with 25 RJ45 sockets 19 inch module carrier made of silver anodized aluminum Connection of one to four pair cables to LSA-PLUS ((R) Registered) insulation displacement terminals (AWG 22-26) suitable for diameters from 0.4 to 0.6 mm Connectable cable types for 25 x 8 (8): 10 x 10 DA, 4 x 25 DA, 2 x 50 DA (DA=double wires) Connectable cable types for 25 x 8 (4): 5 x 10 DA, 2 x 25 DA, 1 x 50 DA (DA=double wires) Wiring according to ISO/IEC 11801/EN 50173-1 The wire pairs can be led to the terminal without unravelling the stranding Strain relief using cable ties (not included) on the rear Cable clamp Cable guide channel for orderly laying of the double wires 5 x clamping plate for drain wire, earthing bolt M6 Variants: 25 x 8 (8), 25 x 8 (4)
| Property | Value |
| Mounting type: | 482.6 mm (19 inch) - installation |
| Height: | 44.45 |
| Width: | 482.6 |
| Depth: | 150 |
| Number of sockets/couplings: | 25 |
| Suitable for number of sockets/couplings: | 25 |
| Connector type: | RJ45 8 (8) |
| Shielded: | no |
| Category: | 3 |
| Connection type: | LSA |
| Number of height units (HE): | 1 |
| Color: | Silver |
