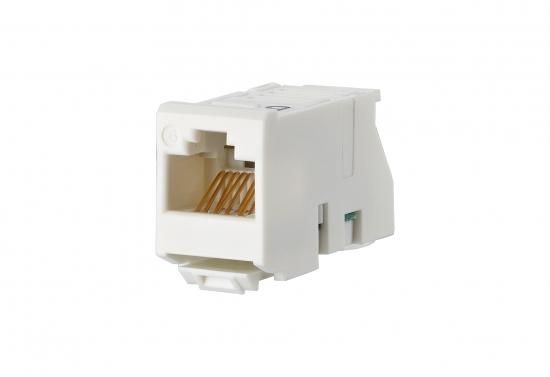

Unshielded Cat.6 Class E UAE module for Gigabit Ethernet Compliance with Class E according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 Remote Powering (PoE, PoE plus and UPoE) and HDBaseT suitable Easy-to-install connection of the 2- to 4-pair data cable AWG 24/1 - 22/1 and stranded conductor with 7-wire CU strand AWG 26/7 to BTR 8-way IDC insulation displacement terminals Strain relief with cable ties on the UAE module possible Installation form: Module Variants: Identification of the wire colors according to T568A, T568B
| Property | Value |
| Suitable for solid conductors: | yes |
| Color: | white |
| AWG range: | 22 to 26 |
| Design: | Socket (jack) |
| Connector type: | RJ45 8 (8) |
| Shielded: | no |
| Category: | 5E |
| Termination type: | Insulation displacement IDC |
| Special tools required: | no |
| Suitable for round cables: | yes |
| Suitable for flat cables: | no |
| Suitable for stranded wires: | yes |
Features
Shielded
No
Category
5E
Connector type
RJ45 8 (8)
HAB
UAEModul 8 (8) Cat.6 socket
Minimal order
12 pcs
Manufacturer
HAN
130909-I
GTIN
4250184105466
AWG range
22 to 26
Connection type
Insulation displacement terminal IDC
Version
Jack
Color
