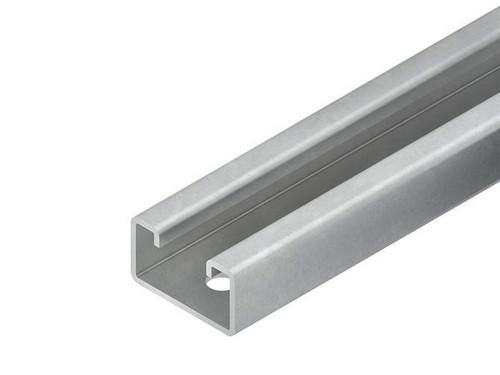

Anchor/profile rail model 2986, C-profile according to DIN EN 60715, unperforated. Matching U-clamps (BU... and BUK...). The protective cap SKC 86 must be installed in personal danger areas. To ensure that the protective cap can be fitted without problems, a distance of at least 30 mm to the end of the profile must be maintained. Dimensions (approx. dimensions) H x W x D: 22 x 40 x 2 mm Slot width: 18 mm Delivery length L: 6000 mm Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
| Property | Value |
| Length: | 6000 mm |
| Width: | 40 mm |
| Height: | 22 mm |
| Material thickness: | 2 mm |
| Material: | Steel |
| Type of Perforation: | without |
| Profile shape: | C-profile |
| Slot width: | 18 mm |
| Material quality: | other |
| With toothing: | no |
| Suitable for functional retention: | no |
| Can be broken off: | no |
| Design: | single profile |
| Area moment of inertia ly: | 1.37 cm4 |
| Area moment of inertia lz: | 4.51 cm4 |
| Section modulus Wy: | 1.11 cm³ |
| Section modulus Wz: | 2.25 cm³ |
Features
Suitable for Functional integrity
No
Material thickness
2 mm
HAB
2986/6 FO 40x22mm SW 18mm unperforated
Minimal order
6 meters
Manufacturer
HAN
2986/6FO
GTIN
4013339043804
Version
Single profile
Width
40 mm
Height
22 mm
Length
6000 mm
Material
Steel
Material quality
Other
