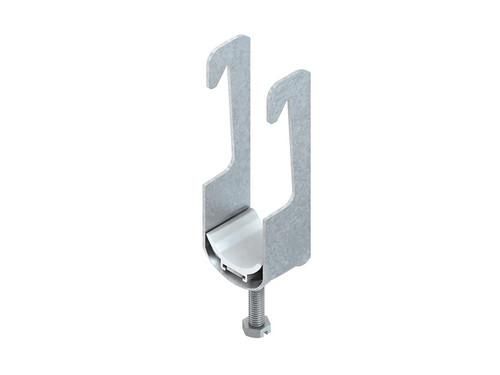

U-clamp, for angle iron, with plastic pressure pan made of PP, halogen-free, pan insert strip-galvanized according to DIN EN 10346, bracket hot-dip galvanized according to DIN EN ISO 1461, can also be used on unequal-leg angle steel and U-iron with a maximum leg length of 40 mm, counter pans (GWU/GWS...) must be ordered separately. Allocation: 1 cable for cable Ø: 12 - 18 mm Angle ironDimensions H x W x t: 40 x 40 x 4-6 mm
| Property | Value |
| Clamping range: | 14 ÷ 18 mm |
| Clamp material: | Steel |
| Screw material: | Steel |
| Mounting type: | Angle profile |
| Halogen-free: | yes |
| Clamp surface protection: | hot-dip galvanized |
| Surface protection screw: | hot-dip galvanized |
| For pipe size PG: | 9 |
| For pipe size (metric): | 18 |
| Max. Number of cables: | 1 |
| Material quality of the clamp: | other |
| Material of the tray: | plastic |
| Material quality of the tray: | polypropylene (PP) |
| Surface protection of tray: | untreated |
| Material quality of the screw: | other |
| With counter tray: | no |
Features
HAB
BWK18 12-18mm
Manufacturer
HAN
BWK18
GTIN
4013339090303
Halogen free
Yes
Mounting type
Angle profile
