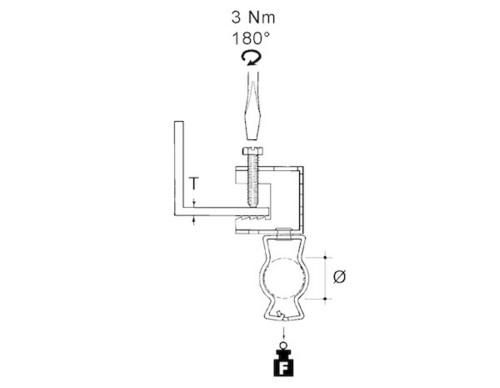

E-clips, screw clamp with one-piece pipe clip, for screwing onto various support flanges, pipe clip can be rotated on screw clamp, for pipe suspension. Dimensions (approx. dimensions) for flange thickness T : 1 - 18 mm clamping support D : 19.5 mm for pipe Ø : 47 - 57 mm load-bearing capacity F : 0.45 kN material : steel, mechanically galvanized/passivated in accordance with DIN EN ISO 9227
| Property | Value |
| Design: | continuous |
| Material: | steel |
| Surface: | galvanically/electrolytically galvanized |
| Material quality: | spring steel |
| Suitable for flange thickness: | 1 to 18 mm |
| Pipe/cable diameter: | 47 to 57 mm |
| Permissible payload: | 450 N |
Features
Suitable for flange thickness
1 to 18mm
HAB
FH65-GM4757
Manufacturer
HAN
FH65-GM4757
GTIN
4013339750627
Version
Continuous
Surface
Galvanized/electrolytically galvanized
Material
Steel
Material quality
Spring steel
