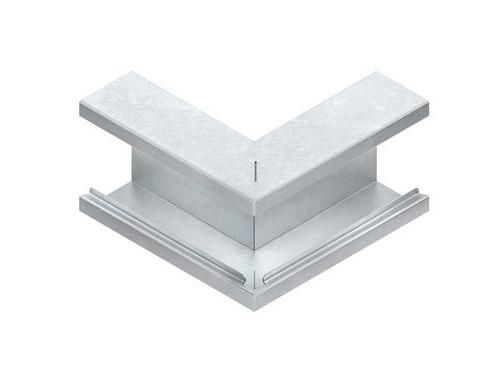

Device duct external corner 90°, made of strip-galvanized steel in accordance with DIN EN 10346, without bottom lugs for holding the dividers, the potential equalization takes place via the inevitably contacting joint connectors GSTE.../GSTA..., please order separately.certified! Dimensions (approx. dimensions) H x D: 133 x 100 mm Outside leg length: 250 mm Lid opening: 78 mm
| Property | Value |
| Width: | 133 mm |
| Depth: | 100 mm |
| Design: | Base |
| Material: | Steel |
| Halogen-free: | yes |
| Surface: | strip galvanized |
| Angle: | 90 ° |
| Number of top parts: | 1 |
| Top part width 1: | 78 mm |
| Symmetrical: | yes |
| Material quality: | other |
| With protective film: | no |
| With channel connector: | no |
| Mounting holes in the base: | no |
| Mounting type of upper parts: | internal |
| With cable retaining clip: | no |
Features
HAB
90° single-pass symmetrical 133x100mm
Manufacturer
HAN
GKA133-78T100S
GTIN
4013339795901
Version
Bottom part
Width
133 mm
Halogen free
Yes
Surface
Strip galvanized
Depth
100 mm
Material
Steel
Material quality
Other
