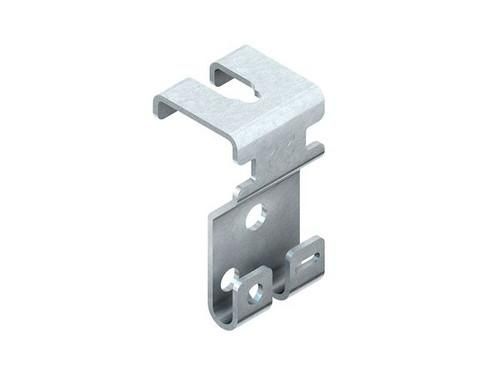

Grid cable tray suspension bracket, for two-sided suspension of the grid cable tray using an M 10 threaded rod, the suspension bracket is used at the interfaces between longitudinal and transverse wires. To prevent the grid cable tray from being levered out of the suspension bracket, the tab can be folded over using a screwdriver. Use: Mesh cable trays with wire diameter 6 mm GR... GRS... GRC... GRCI... MTC... Dimensions (approx. dimensions) H x L: 69 x 35 mm Threaded rod hole: Ø 10.5 mm Mesh cable tray width: 300 mm Material: Stainless steel, material no. 1.4401, 1.4404
| Property | Value |
| Suitable for functional integrity: | no |
| Hinged: | no |
| Adjustable: | no |
| Length: | 69 mm |
| Width: | 35 mm |
| Height: | 69 mm |
| Material: | stainless steel |
| Surface: | other |
| Diameter: | 10 mm |
| Thread size (metric): | 10 |
| Version: | other |
| Stainless steel, pickled: | no |
| Material quality: | rust and acid-resistant steel |
Features
Thread size (metric)
10
Suitable for Functional integrity
No
HAB
Stainless steel
Manufacturer
HAN
GTAB 8 E4
GTIN
4013339136636
Version
Other
Width
35 mm
Diameter
10 mm
Height
69 mm
Length
69 mm
Surface
Other
Hinged
No
Material
Stainless steel
Material quality
Rust and acid resistant steel
