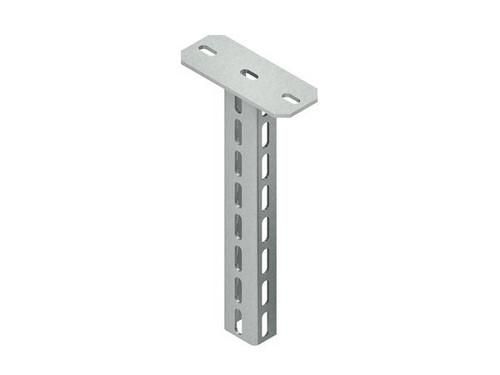

Suspended support, U-profile with continuous perforation on 3 sides and welded-on head plate, system HU 6040/..., for booms for one-, two- and three-sided installation, in order to prevent the deformation of the suspended support profile when installing the boom, the suspended support spacer profile HDS 60.40 F with hexagon screw must be taken into account for static reasons, when attaching the boom to the suspended support profile on one side, the closed side of the boom should preferably be aligned with the profile web of the suspended support. For static reasons and to enable the protective cap to be fitted without any problems, the boom must be mounted at a distance of x=50 mm (bottom edge of boom to end of suspended support), above the end of the suspended support.certified! for booms: KTAL... KTAM... KTA... KTAS... Dimensions (approx. dimensions) Head plate L x W xt: 200 x 80 x 6 mm Fastening holes: 13 x 28 mm Center distance: 152 mm U-profile: 40 x 60 x 40 mm Material thickness t: 4 mm Three-sided profile holes, single row: 13 x 40 mm Center distance: 50 mm Total length L: 256 mm Material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461
| Property | Value |
| Length: | 256 mm |
| Design: | U-profile |
| Load capacity: | 6 kN |
| Profile width: | 40 mm |
| Profile height: | 60 mm |
| Material: | steel |
| Surface: | hot-dip galvanized |
| Stainless steel, pickled: | no |
| Material quality: | other |
| Suitable for functional integrity: | no |
