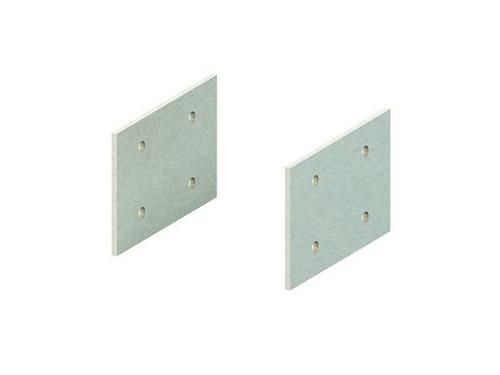

GRP joint connector, pressed, horizontal, screwable, for a longitudinally aligned connection of the cable trays and their fittings at the joint, please order appropriate fastening accessories FKM 6X16 E4 separately, halogen-free. An expansion distance of approx. 8 mm must be taken into account during assembly. Article also available in ...AC (resin mixture with acrylic resin). Can be used for: GRP cable tray KK 80... GRP cable tray KKL 80... and their fittings Required: 1 pair (2 pieces) per joint Dimensions (approx. dimensions) H x L: 55 x 100 mm Material thickness t: 3 mm Fastening holes, two rows: Ø 6.5 mm Center distance: 50 mm Row spacing: 35 mm Material: UP-GF (glass fiber reinforced polyester) Color: pebble gray RAL: 7032 (similar)
| Property | Value |
| Suitable for functional integrity: | no |
| Suitable for cable support system width: | 100 to 600 mm |
| Length: | 100 mm |
| RAL number: | 7032 |
| Design: | Longitudinal connector |
| Hinged connector horizontal: | no |
| Hinged connector vertical: | no |
| Connection type: | Screw connector |
| Suitable for mesh cable tray: | no |
| Suitable for Cable ladder: | no |
| Suitable for cable tray: | yes |
| Suitable for cable support system height: | 80 mm |
| Material: | Plastic |
| Stainless steel, pickled: | no |
| Material quality: | GFRP |
| Surface: | other |
Features
Suitable for Functional integrity
No
HAB
KKGH 80 (pair)
Manufacturer
HAN
KKGH80
GTIN
4013339955633
Version
Longitudinal connector
Length
100 mm
Surface
Other
RAL number
7032
Connection type
Screw connectors
Material
Plastic
Material quality
GRP
